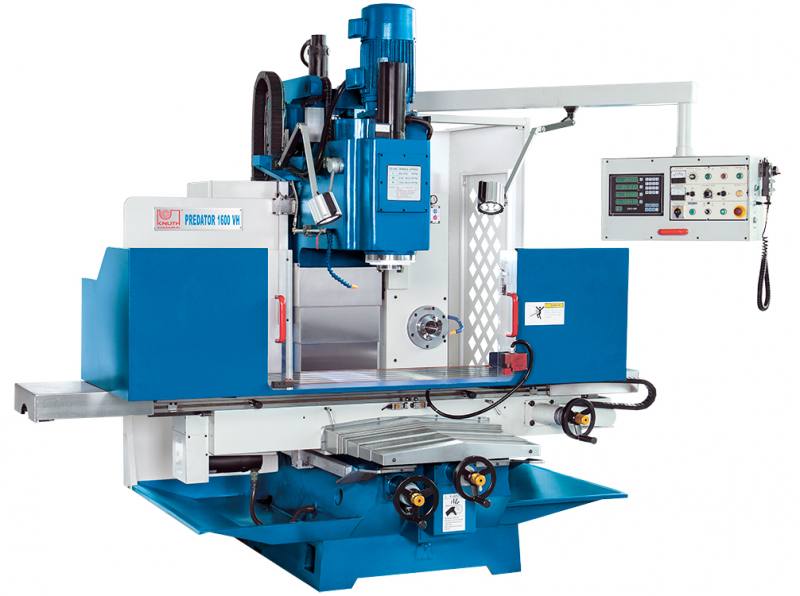

Knuth Bed-Type Milling Machine Predator 1600 VH
|
|
Conventional high-end bed-type milling machine with preloaded ball screws and servo-drives for smooth feeding
- This machine design features excellent load capacity, precision, and reliability
- Heavy bed-type construction accommodates very heavy parts and powerful machining operations
- High-strength, hardened FC-30 cast-iron ensures maximum rigidity and wear-resistance
- Fine-ground and hardened box-ways with plastic counter-lamination on Y and Z
- Linear measuring system on all 4 axes (X, Y, Z, and W)
- Large preloaded ball screws with preloaded spindle nuts on all axes ensure long lasting high accuracy
- All axes feature micro-adjustments and electric hand-wheels for faster machine setup and drastically increased accuracy
- The standard horizontal cutter can be adjusted with the electric hand-wheel - allowing multi-sided machining without re-clamping of parts, if used in connection with a Divider or Rotary Table
- 3-step main drive at vertical cutter head, combined with a reliable variable frequency drive ensure high torque across the entire speed rage
- Horizontal cutter head with dedicated drive, consisting of 5.5 kW motor and 6-step gear
- Telescoping covers made of stainless steel ensure reliable protection of guides and spindles against ingress of chips and coolant
- Individually adjustable automatic central lubrication provides reliable lubrication of all major guide elements
- Pneumatic tool clamping at vertical spindle for easy and quick tool changes
- Brake cylinders provide automatic target position fixation on the Z axis
- Ergonomically arranged, swiveling control panel with position indicator
Specifications - Predator 1600 VH - Bed-Type Milling Machine
working area |
|
travel X-axis |
1600 mm |
travel Y-axis |
650 mm |
travel Z-axis |
600 mm |
travel W-axis |
500 mm |
table set up area |
510x1900 mm |
table load capacity |
1000 kg |
number of T-slots |
5 Pieces |
T-slots, width |
18 mm |
T-slots, spacing |
80 mm |
feed |
|
rapid feed X-axis |
4800 mm/min |
rapid feed Y-axis |
4800 mm/min |
rapid feed Z-axis |
4800 mm/min |
work feed X-axis |
10 - 3000 mm/min |
work feed Y-axis |
10 - 3000 mm/min |
work feed Z-axis |
10 - 3000 mm/min |
work feed W-axis |
10 - 1000 mm/min |
vertical milling head |
|
Speed range (3 steps, infinitely variable) |
(3) 60 - 3000 rpm |
spindle mount |
ISO 50 |
spindle nose-to-table surface distance |
70 - 670 mm |
throat |
610 mm |
horizontal milling head |
|
speed range |
(6) 104 - 1400 rpm |
spindle mount |
ISO 50 |
drive capacity |
|
motor rating vertical spindle |
11 kW |
motor rating horizontal spindle |
5,5 kW |
motor rating X-axis |
1,1 kW |
motor rating Y |
1,1 kW |
motor rating Z |
1,1 kW |
motor rating W-axis |
1,1 kW |
measures and weights |
|
overall dimensions |
4475x2538x2752 mm |
weight |
5800 kg |
Standard equipment - Predator 1600 VH - Bed-Type Milling Machine
3-axis position indicator, pneumatic workpiece clamping in the vertical spindle, horizontal milling unit, electronic hand-wheel, coolant system, automatic central lubrication, work lamp, operating tools, operator manual
Accessories / Tools - Predator 1600 VH - Bed-Type Milling Machine
Milling Chuck WELDON ISO 50
- Milling Chuck WELDON ISO 50 / Ø 10 mm
- Milling Chuck WELDON ISO 50 / Ø 12 mm
- Milling Chuck WELDON ISO 50 / Ø 16 mm
- Milling Chuck WELDON ISO 50 / Ø 20 mm
- Milling Chuck WELDON ISO 50 / Ø 25 mm
- Milling Chuck WELDON ISO 50 / Ø 32 mm
- Milling Chuck WELDON ISO 50 / Ø 6 mm
- Milling Chuck WELDON ISO 50 / Ø 8 mm
|
HNCS 160V Hydraulic Machine Vise |
HS 150 Hydraulic Machine Vise |
MS 160 |
NZM 160 |
Coolant Concentrate 5 Ltr. |
Pivoted Mounts LK 55 |
Power Worker Metal Cutter |
Reduction Sleeve SK 50 / SK 30 |
Reduction Sleeve SK 50 / SK 40 |
RT 250 |
Tailstock / RT 200/250 |
Step of Step Blocks |
Universal Indexing Heads
- Universal Indexing Head 200 mm / KB 2100
- Universal Indexing Head 250 mm / KB 2100
- Universal Indexing Head 320 mm / KB 2100
|
Roughing End Mill Cutter 63 |
|
|
|
