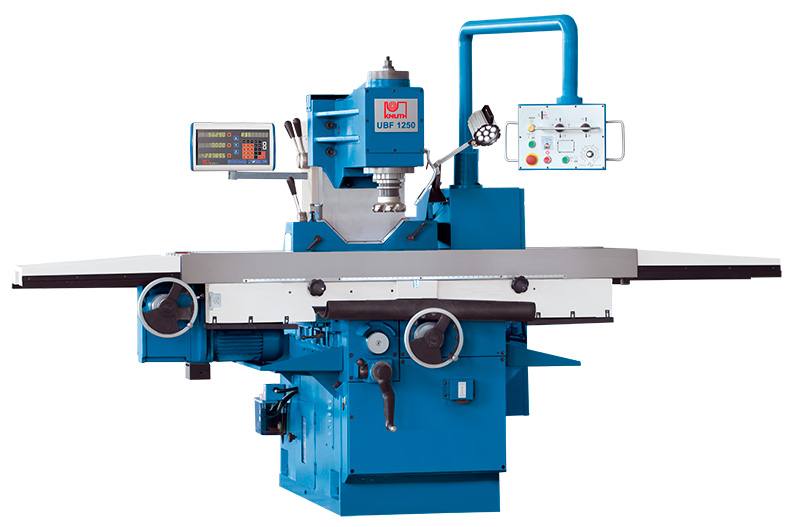

Knuth Bed-Type Milling Machine UBF 1250
|
| |
|
Universal high-performance machine for vertical and horizontal machining of large workpieces
- Bed-type milling machine featuring a rigid design made of premium FC30 cast-iron
- Machine column moves in Z direction, allowing high table loads
- All guides are hardened and ground
- Long table travel (1250 mm) and large table setup area (1800 x 400 mm) allow machining of large workpieces
- All gears of the 8-step main spindle drive are hardened and ground for maximum tool life and quiet operation
- Ideally stepped spindle speed range from 95 to 1200 rpm
- Wide table and column box-ways ensure maximum rigidity and precision even at high table loads
- Infinitely variable vertical, linear and cross feeds
- Electric controls are positioned ergonomically within reach on a long arm
- Central lubrication for simplified maintenance
3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
Specifications - UBF 1250 - Bed-Type Milling Machine
| working area |
|
| travel X-axis |
1250 mm |
| travel Y-axis |
540 mm |
| travel Z-axis |
470 mm |
| table set up area |
1800x400 mm |
| table load capacity |
1000 kg |
| number of T-slots |
4 Pieces |
| T-slots, width |
18 mm |
| T-slots, spacing |
80 mm |
| feed |
|
| rapid feed X-axis |
1200 mm/min |
| rapid feed Y-axis |
1200 mm/min |
| rapid feed Z-axis |
1200 mm/min |
| feed speed X-axis |
16 - 1200 mm/min |
| feed speed Y-axis |
16 - 1200 mm/min |
| vertical milling head |
|
| speed range |
(8) 95 - 1200 rpm |
| spindle mount |
ISO 50 |
| throat |
570 mm |
| vertical spindle-to-table surface distance |
100 - 570 mm |
| drive capacity |
|
| motor rating main drive |
7,5 kW |
| motor rating feed |
1,5 kW |
| motor rating coolant pump |
0,12 kW |
| measures and weights |
|
| overall dimensions |
3000x2535x2050 mm |
| weight |
3200 kg |
Standard equipment - UBF 1250 - Bed-Type Milling Machine
3-axis position indicator, universal head, coolant system, central lubrication, draw bar, work lamp, foundation bolts M12 x 500 mm, operating tools, operator manual
Accessories / Tools - UBF 1250 - Bed-Type Milling Machine
Manual Rotary Table |
| |
| |
| |
