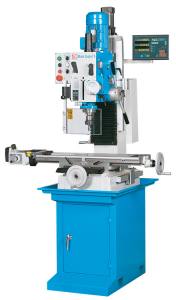

Knuth Drill Press Milling Machine Mark Super S TV1000
|
| |
Cutter head with variable angle, plus large travel distances ensure maximum versatility
The machine head height is adjusted by dovetail guide and lift motor with spindle to provide precise travel. This results in a significantly improved stability during milling operation compared to column-guided systems.
- The integrated tapping feature automatically changes directions upon reaching the preset depth.
- rigid and safety-oriented structure of all operation groups, manufactured with maximum precision
- fully enclosed design of all drive and power transmission elements prevents contamination and ensures trouble-free operation
3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
Specifications - Mark Super S TV1000 - Drill Press / Milling Machine
| working area |
|
| travel X-axis |
560 mm |
| travel Y-axis |
200 mm |
| table dimensions |
800x240 mm |
| drilling capacity, steel |
32 mm |
| guide width |
190 mm |
| shaft milling |
28 mm |
| head elevation |
320 mm |
| speed |
(12) 75 - 3200 rpm |
| number of T-slots |
3 Pieces |
| T-slots, width |
14 mm |
| T-slots, spacing |
80 mm |
| vertical milling head |
|
| spindle mount |
MK 4 / MT 4 |
| quill stroke |
120 mm |
| quill diameter |
75 mm |
| spindle nose-to-table distance |
530 mm |
| throat |
260 mm |
| head swivel range |
± 45° |
| drive capacity |
|
| motor rating main drive |
1,1 kW |
| supply voltage |
400 V |
| measures and weights |
|
| overall dimensions |
990x900x2100 mm |
| weight |
380 kg |
Standard equipment - Mark Super S TV1000 - Drill Press / Milling Machine
3-axis position indicator, base, table feed TV 1000, drill chuck 13 mm, tool-holder bits , operator manual
Accessories / Tools - Mark Super S TV1000 - Drill Press / Milling Machine
| Mounting Shaft MT 4 |
Lathe Bore Head with Boring Bar Set 50 mm 9 pcs.
- Lathe Bore Head with Boring Bar Set 50 mm 9 pcs.
- Lathe Bore Head with Boring Bar Set 75 mm 12 pcs.
|
| Dial for HNCS 130V |
| ER 32 Collet Chuck / Mount MT 4 |
| ER 40 Collet Chuck / Mount MT 4 |
| ER 40 Collet Set 15 pcs. |
| Milling Chuck Set MT 4 |
| Swivel Hold-Down Clamp Set 100/M12 |
| HNCS 130V Hydraulic Machine Vise |
| HS 125 Hydraulic Machine Vise |
| INDEX-feature / RT 160-320 |
Shell End Milling Arbor MT 4
- Shell End Milling Arbor Ø16 MT 4
- Shell End Milling Arbor Ø22 MT 4
|
| Coolant Concentrate 5 Ltr. |
| NZM 125 |
| MS 125 |
| Power Worker Metal Cutter |
| PMS 100 |
| Tailstock / RT 200/250 |
| RT 200 |
| Roughing Shank Cutter 10 pcs. |
| End Mill Set DIN 844 B |
| RTS 250 |
| ST 250 |
| Pivoted Mounts LK 33 |
| Stud Bolt Set, and T-Slot Nuts 14/M12 |
| Optional Accessory Set / ST 130 |
| Collet Set MT 4 |
| Collet Chuck MT 4 |
| De Luxe Clamping Tool Set 14/M12 |
| Step of Step Blocks |
| ST 130 |
| TV 1000 M |
| HT |
| Roughing End Mill Cutter 63 |
| Accessory-Set MT 4 8-pc. |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
