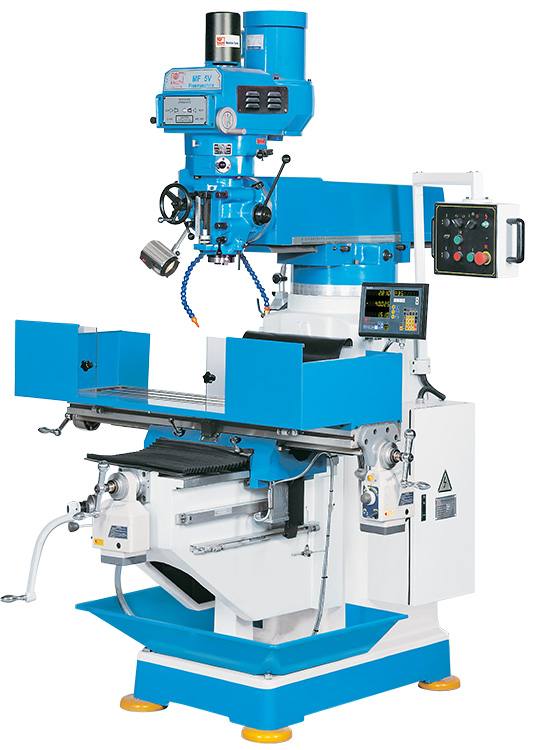

Knuth Multipurpose Milling Machine MF 5 VP
|
|
Multi-Purpose Milling Machine for workshops, single part production, design, training
all the benefits of the MF 1 V plus:
- more rigid and more powerful with 3.75 kW motor
- ISO 40 spindle
- 3 automatic drill feeds
- manual coarse feed for quill, with change-over for manual fine feed
- quill with micrometer depth stop
- reversing switch for forward reverse rotation
- spindle brakes
- wide square guides in Y and Z axis
- infinitely variable speeds
- head swivels ± 90° to the right and to the left
- TV 1000 table feed in X and Y, infinitely variable with rapid feed
- coolant system
- chip tray
- central lubrication
- pneumatic tool clamping
3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
Specifications - MF 5 VP - Multipurpose Milling Machine
working area |
|
travel X-axis |
800 mm |
travel Y-axis |
390 mm |
travel Z-axis |
380 mm |
table set up area |
1370x250 mm |
table load capacity (max.) |
350 kg |
feed |
|
quill feeds |
(3) 0,04; 0,08; 0,15 mm/R |
vertical milling head |
|
speed range, infinitely variable |
70 - 3600 rpm |
spindle mount |
ISO 40 |
quill stroke |
127 mm |
drive capacity |
|
motor rating main drive |
3,75 kW |
supply voltage |
400 V |
measures and weights |
|
overall dimensions |
2540x2156x2235 mm |
weight |
1590 kg |
Standard equipment - MF 5 VP - Multipurpose Milling Machine
3-axis position indicator, Tischvorschub TV 1000 in X- und Y-Achse, pneumatic tool clamping, chip tray, coolant system, central lubrication, horizontal guideway cover, operating tools, operator manual
Accessories / Tools - MF 5 VP - Multipurpose Milling Machine
Adapter SK 40 / MT 3 |
Mounting Shaft ISO 40 |
Dial for HNCS 130V |
ER 32 Collet Chuck / Mount ISO 40 |
ER 32 Collet Set 6 pcs. |
ER 40 Collet Chuck / Mount ISO 40 |
ER 40 Collet Set 15 pcs. |
Milling Chuck Set ISO 40 |
Swivel Hold-Down Clamp Set 100/M14 |
HNCS 130V Hydraulic Machine Vise |
HS 125 Hydraulic Machine Vise |
INDEX-feature / RT 160-320 |
Shell End Milling Arbor SK 40
- Shell End Milling Arbor Ø16 SK 40
- Shell End Milling Arbor Ø22 SK 40
- Shell End Milling Arbor Ø27 SK 40
- Shell End Milling Arbor Ø32 SK 40
- Shell End Milling Arbor Ø40 SK 40
|
Coolant Concentrate 5 Ltr. |
NZM 125 |
MS 125 |
Assembly Stand |
PMS 100 |
Reduction Sleeve SK 40 / SK 30 |
Tailstock / RT 200/250 |
RT 200 |
Roughing Shank Cutter 10 pcs. |
End Mill Set DIN 844 B |
RTS 250 |
ST 250 |
Pivoted Mounts LK 33 |
Stud Bolt Set, and T-Slot Nuts 16/M14 |
Optional Accessory Set / ST 130 |
Collet Chuck SK 40 |
De Luxe Clamping Tool Set 16/M14 |
Step of Step Blocks |
ST 130 |
ADA / SK40 |
HT |
Roughing End Mill Cutter 63 |
Accessory-Set ISO 40 5-pc. |
|
|
|
|
|
|
|
|
|
|
