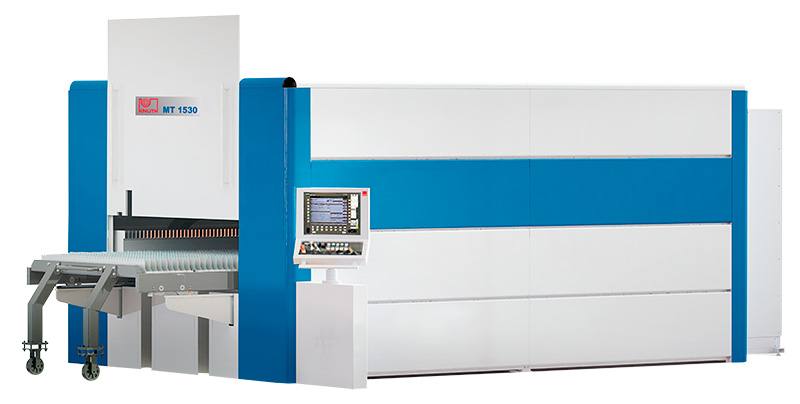

Knuth Laser Cutting System D.Laser MT1530/FL2000
|
|
With efficient fiber laser for large plates
Large-size cutting system with manually retractable cutting table, X/Y drive based on gear racks
- Robust steel machine frame made of welded, annealed steel construction for minimal stress
- Massive gantry design absorbs high axis loads and acceleration forces
- Small parts, residue and slag are transported on a conveyor underneath the cutting table towards the machine side: for short transport distance with quick and easy removal
- Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures long life of the laser source
- Laser cutting process takes place within a sealed, laser-safe enclosure, whereby machining can be monitored through a protective glass window
- CNC control based on Siemens 840 D with application-specific user interface
- Technology database includes cutting parameters and pre-set cycles for various metals
- CAD/CAM software with various nesting options to ensure optimal use of materials
High-capacity cutter head
- the HPSSL high-capacity cutter head ensures constantly high cutting speeds and cut quality even at varying operating temperatures
- digitally adjustable work distance between cutter nozzle and workpiece
- quick change-over between three focal lengths without changing the Tool Center Point (TCP)
- simple manual focus position adjustment to maximize cut quality at various plate thicknesses
- protective window can be replaced as consumable part to ensure extra long life of the focusing lens
Specifications - D.Laser MT1530/FL2000 - Laser Cutting System
working area |
|
travel X-axis |
3060 mm |
travel Y-axis |
1550 mm |
travel Z-axis |
200 mm |
table dimensions |
3000x1500 mm |
max. workpiece weight |
1,1 kg/dm² |
axis acceleration |
10 m/s² |
feed |
|
rapid feed X-axis |
85000 mm/min |
rapid feed Y-axis |
100000 mm/min |
accuracies |
|
positioning accuracies |
± 0,05 mm / ± 0,002" |
repeatabilities |
± 0,05 mm / ± 0,002" |
measures and weights |
|
overall dimensions |
9150x4050x2420 mm |
weight |
9000 kg |
Laser |
|
shaft length |
1,07 - 1,08 µm |
beam power |
0,2 - 2 W |
pulse frequency |
5000 Hz |
power consumption |
8 kW |
cutting capacity in structural steel |
15 mm |
cutting capacity in stainless steel |
6 mm |
cutting capacity in aluminum |
5 mm |
Cutting capacity in copper |
5 mm |
Cutting capacity in brass |
6 mm |
Control - D.Laser MT1530/FL2000 - Laser Cutting System
Siemens Sinumerik 840 D Laser
Standard equipment - D.Laser MT1530/FL2000 - Laser Cutting System
Complete system including CNC control (Siemens 840 D), Ytterbium fiber laser, fiberoptic cable, high-pressure cutter head, capacitive height sensing, laser protection booth, retractable cutting table, small parts and slag conveyor, central lubrication, coolant regeneration, CAD/CAM software, operating manual and programming instructions
|
|
|
|
