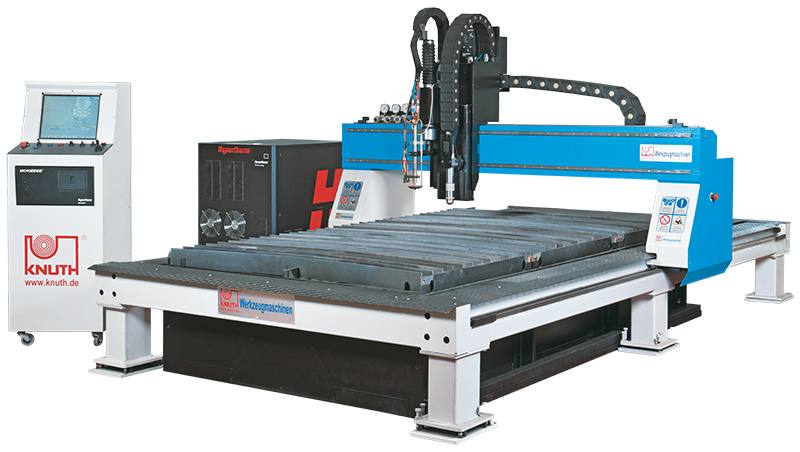

Knuth Plasma Cutting System Plasma Jet DSH 1530 HPR 260 XD
|
| |
|
World-Class Plasma Cutter Systems based on the know-how and technology of the market leader Hypertherm
- Including: - automatic nesting software - automatic gas console - oxy-fuel flame head - exhaust system
- Complete Hypertherm equipment: Plasma source, CNC control, software and vertical control are included to allow immediate use of all the possibilities modern plasma technology offers
- The Plasma Cutter Guide Machine features a rigid construction and is available in virtually any size
- high-quality linear guides on all axes ensure high precision and rapid axis travel
- dual-drive bridge
- dynamic AC servo drives on all axes
- low-wear and low-maintenance gears are designed for continuous operation
- a free-standing, extremly rigid vacuum exhaust table is segmented to allow pneumatic flap control and to provide optimum suction performance across the entire work area
- quick-coupling for cutter head changes in seconds
- automatic vertical adjustment for Hypertherm unit
- automatic collision guard
- Windows-based Control System
Specifications - Plasma Jet DSH 1530 HPR 260 XD - Plasma Cutting System
| cutting station |
|
| cutting range |
1500x3000 mm |
| rapid feed |
30000 mm/min |
| table load capacity |
1000 kg/m² |
| plasma source |
|
| max. cutting capacity (edge start) St 37 |
64 mm |
| production cutting capacity (plunge-cuts) St 37 |
38 mm |
| cut angle |
Klasse (class) 2-4 nach (to) ISO 9013 |
| plasma source power |
36 kW |
| cutting current |
30 - 260 A |
| process gases |
H35/N2, N2/N2, H35-N2/N2, F5/N2, Luft/Luft, O2/Luft, O2/O2 |
| plasma source dimensions |
1150x820x1190 mm |
| plasma source weight |
567 kg |
| accuracies |
|
| positioning accuracies |
± 0,02 mm |
| repeatabilities |
± 0,02 mm |
| measures and weights |
|
| overall dimensions |
2650x4200x2000 mm |
| weight |
3600 kg |
Control - Plasma Jet DSH 1530 HPR 260 XD - Plasma Cutting System
Hypertherm MicroEDGE Pro
|
Increased quality and productivity for reduced cost using an advanced control technology!
- HyDefinition cut quality
- Automatic kerf-width compensation according to material thickness, current and speed
- Automatically adjusted plunge-cut and cutting height ensure maximum service life of wear parts
High user comfort
- Offline software automatically sets up the cutting process parameter
- Easy configuration of orders with CutPro Wizard
- User prompts to enter board type and wear part number
- Tips for cutting optimization
- Operator manual for CNC, torch height control and plasma source on the operating display
- Diagnostics via Internet
- Offline diagnostics via form requisition/CNC software for the parts program
Standard Equipment
- Operating system: Windows
- Industrial PC with 15“ touch-screen monitor
- Graphical user interface
- USB port
|
|
Standard equipment - Plasma Jet DSH 1530 HPR 260 XD - Plasma Cutting System
Hypertherm CNC control, Hypertherm plasma source, Hypertherm arc height control, automatic gas console, oxy-fuel flame head, Auto Nesting, vacuum system, vacuum exhaust table
|
| |
| |
| |
| |
| |
| |
