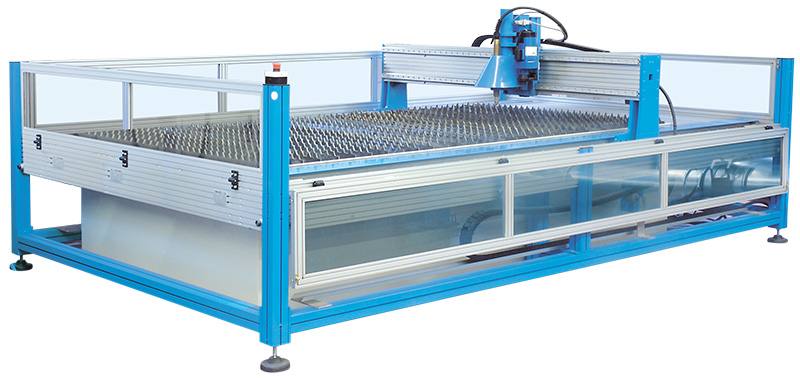

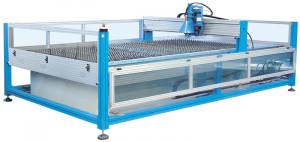

Knuth Plasma Cutting System TFGM Plasma 3015 PM1250


Price on request


Product No.:
840784




Knuth Plasma Cutting System TFGM Plasma 3015 PM1250



Low-cost compact Plasma Cutter System, including cutting table, premium plasma source, catch tray, and ready for connection of a smoke exhaust


  • high-resolution step motors with planetary gears for exact positioning and high repeatability
  • robust gear drive for travel speeds up to 250 mm/s
  • cost-effective air plasma cutter for structural steel, stainless steel, aluminum, etc.
  • linear guides on all axes
  • X axis with drives on both sides
  • Opticut-CNC Software Package
  • includes Hypertherm Powermax 1250 - quick and low-cost with advanced technology
  • ready for connection to an exhaust system (not included)
  • bridge height: 140 mm

A smoke exhaust must be used during operation of the cutting system!

Specifications - TFGM Plasma 3015 PM1250 - Plasma Cutting System

working area
table dimensions 3050x1550 mm
bridge height 140 mm
max. cutting capacity (edge start) St 37 20 mm
production cutting capacity (plunge-cuts) St 37 10 mm
air consumption 300 l/min
pressure (min.) 8 bar
Z axis / basin exhaust connections 150/150 Ø/mm / 6"/6" diam
feed
rapid feed 12000 mm/min
feed 9000 mm/min
drive capacity
connected load (machine without plasma source) 4 kW
measures and weights
overall dimensions 4100x2400 mm
weight 1550 kg
plasma source Powermax 1250
plasma source power 20 kW
line voltage 200 - 600 V
cutting current 25 - 80 A
cutting capacity max. 16 mm
speed (bei 12 mm) 991 mm/min / (at 1/2") 40"

Standard equipment - TFGM Plasma 3015 PM1250 - Plasma Cutting System

Powermax 1250 plasma source, machine torch, ground wire, basic set of nozzles, work table with vacuum connection, partially enclosed workspace, Opticut CNC CAM System 5.0 - completely wired for connection to customer-provided PC, (System Requirements: Windows 98 / XP, USB port), operator manual

Accessories / Tools - TFGM Plasma 3015 PM1250 - Plasma Cutting System

Light curtains on 2 sides
