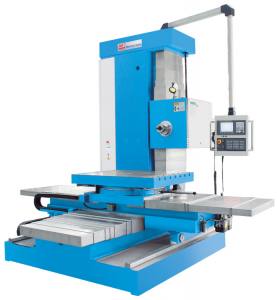

Knuth CNC Drill and Mill Center BO 130 CNC
|
| |
|
Heavy-Duty CNC Milling / Drill Unit with Fanuc 0i MD control for large and heavy parts
- 4-sided machining
- infinitely variable spindle speed with AC servo-motor, 15 kW power and high torque
- wide machine bed with 4 guideways
- rigid milling table with high load capacity for part weights up to 5 tons
- 3-axis CNC control
- rigid square guides ensure consistent work accuracy
- high-quality, high-precision preloaded ball screws supported by special bearings ensure maximum positioning accuracy for all feed axes
- telescoping stainless steel covers protect the guides from chips and dirt
- rotary table with manual clamping can be locked at 4 positions: 0°, 90°, 180° and 270°
Specifications - BO 130 CNC - CNC Drill and Mill Center
| working area |
|
| travel X-axis |
1500 mm |
| travel Y-axis |
1200 mm |
| travel Z-axis |
1000 mm |
| travel W-axis |
550 mm |
| table dimensions |
1000x1350 mm |
| table load capacity |
5000 kg |
| number of T-slots |
7 Pieces |
| T-slots, width |
22 mm |
| T-slots, spacing |
250 mm |
| spindle axis-to-table surface distance |
0 - 1200 mm |
| cutting capacity |
|
| drilling capacity, steel |
50 mm |
| counter-boring capacity |
250 mm |
| headstock |
|
| spindle speed |
12 - 1000 rpm |
| spindle diameter |
130 mm |
| headstock torque |
1330 Nm |
| spindle mount |
BT 50 |
| feed |
|
| max. torque feed motor (X,Z) |
22 Nm |
| max. torque feed motor (Y,W) |
30 Nm |
| rapid feed X-axis |
10000 mm/min |
| rapid feed Y-axis |
10000 mm/min |
| rapid feed Z-axis |
5000 mm/min |
| rapid feed W-axis |
10000 mm/min |
| feed speed X-axis |
5 - 2000 mm/min |
| feed speed Y-axis |
5 - 2000 mm/min |
| feed speed Z-axis |
0,5 - 1000 mm/min |
| feed speed W-axis |
5 - 2000 mm/min |
| accuracies |
|
| positioning accuracy X-axis |
0,04 mm |
| positioning accuracy Y-axis |
0,04 mm |
| positioning accuracy W-axis |
0,03 mm |
| positioning accuracy Z-axis |
0,03 mm |
| repeatability X-axis |
0,02 mm |
| repeatability Y-axis |
0,02 mm |
| repeatability Z-axis |
0,015 mm |
| repeatability W-axis |
0,015 mm |
| work table rotation accuracy |
± 6" (4x90°) |
| work table repeatability |
± 3" (4x90°) |
| drive capacity |
|
| motor rating main drive (cont./30 min) |
13,1/15 kW / 17,5/20 Hp |
| measures and weights |
|
| overall dimensions |
5010x3700x3600 mm |
| weight |
15000 kg |
Control - BO 130 CNC - CNC Drill and Mill Center
Fanuc 0i-MD mit Manual Guide 0i
|
High Performance for Excellent Productivity
- Advanced fixed cycles, graphical support
- Boring Pattern Cycles
- Milling Pattern Cycles
- G & M Code help
- ISO CODE Programming Assistant
- Powerful program preview function (Look Ahead) for maximum machining speed and accuracy
- Graphic simulation for reliable control of NC programs
- standardized milling and boring cycles for simplified parts programming
- High compatibility with existing Fanuc CNC programs
A wealth of world-class functions in the Basis CNC ensures maximum productivity
- Port for storage card, processing of storage card in DNC operation
- Advanced Look Ahead function
- NANO Interpolation
- Ethernet Interface
- High-Performance digital Servo System on all axes
- optional free M Codes
- optional relay outputs
- 512 KB storage for parts programs / Package A
- multiple languages
- Advanced help function and alarm/operating archive
- High-speed Machining: better parts even faster
- RS232 port
- Tool life time management for maximum machine utilization
- process time and parts counter
|
|
Standard equipment - BO 130 CNC - CNC Drill and Mill Center
Fanuc 0i MD with Manual Guide 0i, electronic hand-wheel, RS-232 interface , central lubrication, work lamp, operating manual and programming instructions
|
| |
| |
|
| |
| |
| |
| |
| |
| |
