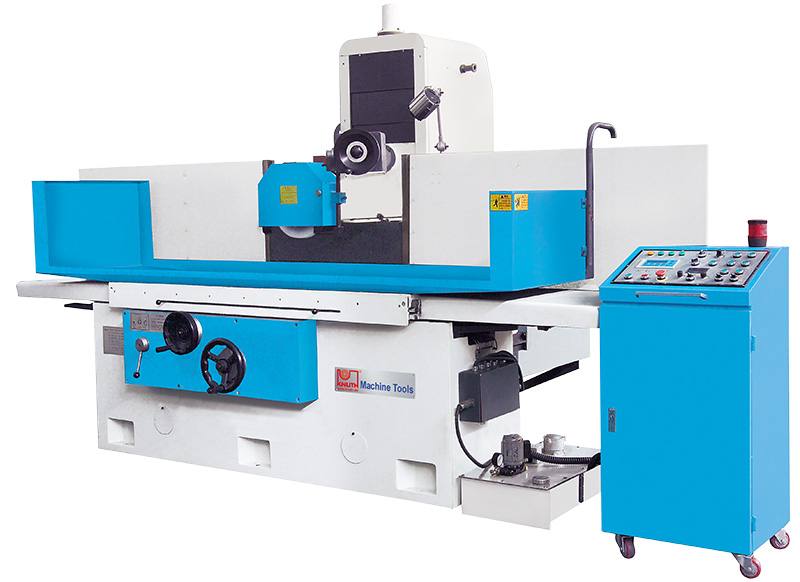

Knuth Hydraulic High-Capacity Surface Grinder HFS E 60120 VC
|
|
High-Performance Surface Grinders with programmable Siemens PLC Control
- Y and Z axis are programmed via PLC
- Y axis and Z axis are driven by high-quality AC motors
- powerful 7.5 kW drive
- headstock runs in preloaded angular ball bearings and features a high load capacity
- X and Y axis guideways are counter-laminated (plastic)
- separate hydraulic unit with oil cooler
- X axis with high-dynamic, hydraulic drive
- combination of boxways and V-guides on X and Y, plus rectangular guideway on Z
- premium components ensure maximum accuracy for continuous operation
Specifications - HFS E 60120 VC - Hydraulic High-Capacity Surface Grinder
working area |
|
travel X-axis |
1400 mm |
travel Y-axis |
660 mm |
grinding area (max.) |
1200x610 mm |
workpiece weight (max.) |
970 kg |
spindle axis-to-table surface distance |
600 mm |
table dimensions |
1260x610 mm |
T-slots, spacing |
200 mm |
number of T-slots |
3 Pieces |
T-slots, width |
18 mm |
scale ring division Y-axis |
0,02 mm |
scale ring division Z-axis |
0,002 mm |
feed per hand-wheel rotation Y-axis |
5 mm |
feed per hand-wheel rotation Z-axis |
0,5 mm |
feed |
|
feed speed X-axis |
5000 - 25000 mm/min |
feed speed Y-axis |
1250 mm/min |
automatic X axis feed |
0,5-20 mm |
automatic Z axis feed |
0,005 / 0,01 / 0,015 / 0,02 / 0,03 / 0,04 mm |
rapid feed Z-axis |
230 mm/min |
drive capacity |
|
headstock motor rating |
7,5 kW |
motor rating hydraulic pump |
5,5 kW |
total power consumption |
14 kVA |
electromagnetic clamping plate |
1000x600 mm |
measures and weights |
|
grinding wheels dimensions |
355x50x127 mm |
overall dimensions |
4270x2300x2280 mm |
weight |
7200 kg |
Control - HFS E 60120 VC - Hydraulic High-Capacity Surface Grinder
Standard equipment - HFS E 60120 VC - Hydraulic High-Capacity Surface Grinder
Siemens PLC control, 2-axis position indicator, grinding wheel, hydraulic oil cooler, coolant system, magnetic clamping plate, grinding wheel flange, balancing shaft, balancing station, splatter guard, adjustable machine feet, diamond dresser, automatic central lubrication, automatic degausser, operating tools, operator manual
|
|
|
|
|
|
|
