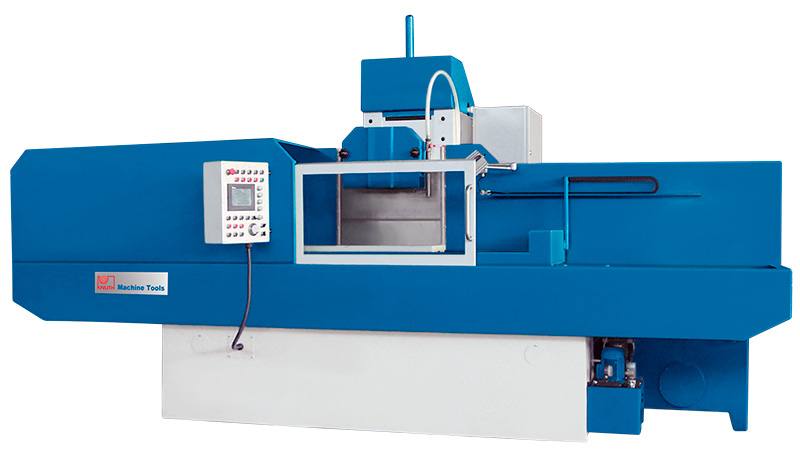

Knuth NC controlled Surface Grinder HFS 31125 NC

Product No.:
124600
Price on request,

Knuth NC controlled Surface Grinder HFS 31125 NC


High efficiency and unsurpassed precision combined with an intuitive control


  • Heavy machine frame in a rigid design ensures torsion-proof operation and optimum absorption of peak loads during table direction reversals
  • Large table offers space for workpiece sizes up to 1250 x 320 x 400 mm (LxWxH)
  • Preloaded ball screws on Y and Z axis ensure high precision during grinding operations
  • Machine features modern servo-drives, low vibration, and precise control
  • Automatic dressing reduces down-times and increases accuracy
  • Servo-drives allow dynamic feed adjustments and rpm control resulting in drastically improved surface quality
  • Automatic shut-down of electromagnetic clamping plate upon power outages
  • Machine setup can be accomplished via an electronic hand-wheel, which is directly coupled with the X- and Y-axis drives, reducing tooling time to a minimum
  • Work table feed speeds are variable and can be selected quickly
  • 11 kW main motor provides ample power reserves for larger feeds

Specifications - HFS 31125 NC - NC controlled Surface Grinder

working area
travel X-axis 1470 mm
travel Y-axis 415 mm
travel Z-axis 625 mm
grinding area (max.) 1250x320 mm
workpiece weight (max.) 600 kg
spindle axis-to-table surface distance 625 mm
table dimensions 1250x320 mm
scale ring division Y-axis 0,001 - 0,1 mm
scale ring division Z-axis 0 - 5 mm
feed per hand-wheel rotation Y-axis 0,001 mm
feed per hand-wheel rotation Z-axis 0,02 mm
feed
feed speed X-axis 2000 - 35000 mm/min
feed speed Y-axis 4000 mm/min
feed speed Z-axis (infinitely variable) 300 mm/min
automatic Z axis feed 1 - 60 mm
drive capacity
motor rating main drive 11 kW
motor rating hydraulic pump 4 kW
measures and weights
grinding wheels dimensions 450x80x203 mm
overall dimensions 4950x2450x2665 mm
weight 7200 kg

Control - HFS 31125 NC - NC controlled Surface Grinder

NC Steuerung

  • User-friendly numeric control with integrated grinding cycles give the operator full control over grinding depth adjustments and advancement of feeds
  • Automatic monitoring of table movement for increased grinding accuracy




Standard equipment - HFS 31125 NC - NC controlled Surface Grinder

Numeric control, electromagnetic clamping plate 1250x320 mm, grinding wheel, grinding wheel flange, automatic diamond dresser, dress equipment, balancing station, balancing mandrel, trueing tool, work lamp, partial enclosure, operating tools, operator manual

Accessories / Tools - HFS 31125 NC - NC controlled Surface Grinder

Diamond dressing wheel
Balancing station
Diamond dresser
Grinding wheel
