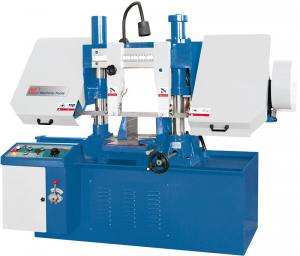

HB 350 C Semi-Automatic Horizontal Band Saw
Semi-automatic Horizontal Band Saw for single parts and batch production of medium-sized to large workpieces
|
| |
HB 350 C Semi-Automatic Horizontal Band Saw:
- proven design with dual-column guides ensure maximum accuracy and stability for cost-effective machining of large parts
- the torsion-proof saw frame features an infinitely adjustable feed
- at the end of the sawing cycle, the saw blade belt will stop and the saw blade will automatically return to the home position
- very rigid, adjustable saw blade guides keep the saw blade belt on track
- including hydraulic workpiece clamping with clamping pressure control
- hydraulic saw blade tensioning
Specifications - HB 350 C Semi-Automatic Horizontal Band Saw:
|
Cutting capacities
Cutting capacity 90° (flat)
Cutting capacity 90° (round)
Cutting capacity 90° (square)
Cutting speed
|
350x350 mm
350 mm
350 mm
45, 69 m/min
|
|
Drive capacity
Motor rating main drive
Main drive, continuous load
Motor rating hydraulic pump
Motor rating coolant pump
|
3 kW
2,2 kW
0,55 kW
0,04 kW
|
|
Measures and weights
Belt dimensions
Overall dimensions
Weight
|
4.115x34x1,1 mm
2.000x1.100x1.500 mm
700 kg
|
Standard equipment - hydraulic part clamping, linear stop, feed roller table, 1 saw blade, automatic band break control, coolant system, chip brush, work lamp, operator manual
|
