Knuth Fully Automated Band Saw ABS 320 C
|

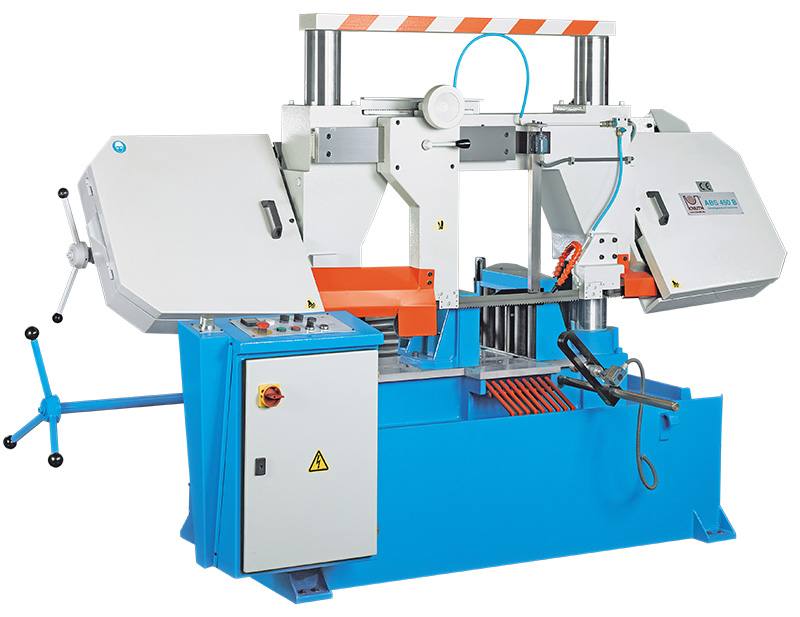

| ABS 450 B shown |
| |
| |
|
Fully automatic high-performance band saw with twin column guide system
- main drive with 1.5 kW provides for sufficient power reserves
- rigid dual-column guide for parallel cuts
- torsion-resistant weldment
- helical gears, designed for continuous operation with above average life time and low maintenance
- parts counter
- infinitely variable cutting speed from 20 to 100 mm/min for optimum cutting results
- band breakage control
- carbide saw-band guides
- coolant system with 3 nozzles
- feed roller table and linear stop are standard equipment
Specifications - ABS 320 C - Fully Automated Band Saw
| cutting capacities |
|
| cutting capacity 90° (flat) |
350x320 mm |
| cutting capacity 90° (round) |
320 mm |
| cutting capacity 90° (square) |
320x320 mm |
| stop length |
500 mm |
| cutting speed |
20-100 stufenlos / infinitely variable m/min |
| working area |
|
| roller guide length |
1000 mm |
| drive capacity |
|
| motor rating main drive |
1,5 kW |
| motor rating hydraulic pump |
0,55 kW |
| motor rating coolant pump |
0,12 kW |
| motor rating feed |
0,25 kW |
| supply voltage |
400 V |
| measures and weights |
|
| overall dimensions |
2100x900x1500 mm |
| weight |
940 kg |
Standard equipment - ABS 320 C - Fully Automated Band Saw
saw-band, bundle vise, coolant system, saw blade cleaner brush, feed roller table, operator manual
Accessories / Tools - ABS 320 C - Fully Automated Band Saw
ABS 320 C
- Bi-Metallic Bandsaw Blade ABS 320 C (3/4 Z/")
- Bi-Metallic Bandsaw Blade ABS 320 C (4/6 Z/")
- Bi-Metallic Bandsaw Blade ABS 320 C (5/8 Z/")
|
| Coolant Concentrate 5 Ltr. |
|
| |
| |
| |
| |
| |
| |
