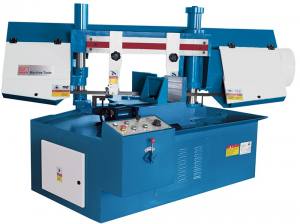

Knuth  HBG 350 Semi-Automatic Horizontal Miter Band Saw

  • extremely rigid dual-column cast-iron construction with heavy swivel console
  • 2 cutting speeds - directly shifted via main drive motor
  • infinitely variable saw frame feed
  • horizontal saw frame swivels up to 30°
  • at the end of each sawing cycle, the saw blade frame will automatically return to the home position
  • extra rigid, adjustable saw blade guide
  • including hydraulic workpiece clamping with clamping pressure control

Specifications - HBG 350 Semi-Automatic Horizontal Miter Band Saw



Cutting capacities

Cutting capacity 90° (flat)

Cutting capacity 90° (round)

Cutting capacity 90° (square)

Cutting capacity 45° (flat)

Cutting capacity 45° (round)

Cutting capacity 45° (square)

Cutting capacity 30° (flat)

Cutting capacity 30° (round)

Cutting capacity 30° (square)

Cutting speed





380x350 mm

350 mm

350 mm

245x350 mm

245 mm

245 mm

300x350 mm

300 mm

300 mm

45, 69 m/min



Drive capacity

Main motor rating

Motor rating main drive

Main drive, continuous load

Motor rating hydraulic pump

Motor rating coolant pump



2,2/2,8 kW

2,8 kW

2,2 kW

0,55 kW

0,04 kW

Measures and weights

Belt dimensions

Overall dimensions

Weight



4.515x34x1,1 mm

2.300x1.500x1.600 mm

850 kg



Standard equipment - HBG 350 Semi-Automatic Horizontal Miter Band Saw
1 saw blade, hydraulic part clamping, automatic band break control, linear stop, saw blade cleaner brush, material support, coolant system, work lamp, operator manual
