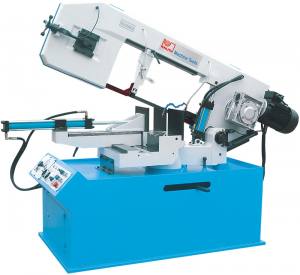

Knuth Semi-Automatic Swivel Miter Band Saw SBS 330
|
|
Flexible use in industrial and steel construction
- for machining of tubes, beams, solid materials, and hollow sections of steel and stainless steel
- easy adjustment and central clamping in the selected angle from -60° to 45°
- heavy duty drive with low maintenance
- saw frame runs in adjustable bearings on a heavy cast-iron base
- an adjustable hydraulic cylinder allows fine-tuned saw frame feed
- kraftvoller, hydraulischer Spannstock links oder rechts vom Sägeblatt positionierbar
- der massive, verstellbare Gussarm garantiert die exakte Führung des Sägeblattes
- im Automatikbetrieb wird das Material automatisch gespannt, gesägt, nach Schnittende der Sägebügel angehoben und der Schraubstock wieder geöffnet - dieser hohe Automatisierungsgrad unterstützt schnelle und wirtschaftliche Bearbeitung
Specifications - SBS 330 - Semi-Automatic Swivel Miter Band Saw
cutting capacities |
|
cutting capacity 90° (flat) |
460x250 mm |
cutting capacity 90° (round) |
330 mm |
cutting capacity 90° (square) |
250x250 mm |
cutting capacity 45° (flat) L |
305x250 mm |
cutting capacity 45° (round) L |
205 mm |
cutting capacity 45° (square) L |
250 mm |
cutting capacity 45° (flat) R |
305x250 mm |
cutting capacity 45° (round) R |
305 mm |
cutting capacity 45° (square) R |
250 mm |
cutting speed |
40 / 80 m/min |
drive capacity |
|
motor rating main drive (cont./30 min) |
1,5/2,2 kW |
supply voltage |
400 V |
measures and weights |
|
belt dimensions |
3960x27x0,9 mm |
overall dimensions |
2310x1070x1630 mm |
weight |
750 kg |
Standard equipment - SBS 330 - Semi-Automatic Swivel Miter Band Saw
coolant system, hydraulic vise, 2-step-motor, 1 saw blade, feed roller table (1 m), band break control, operator manual
Accessories / Tools - SBS 330 - Semi-Automatic Swivel Miter Band Saw
Bi-Metallic Bandsaw Blade for SBS 330
- Bi-Metallic Bandsaw Blade / SBS 330 (8/12 Z/")
- Bi-Metallic Bandsaw Blade SBS 330 (4/6 Z/")
|
Coolant Concentrate 5 Ltr. |
Power Worker Metal Cutter |
|
|
|
|
