» » » » Knuth Vertical Metal Band Saw VB 360

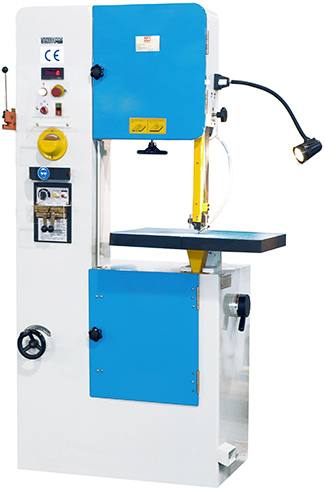

Knuth Vertical Metal Band Saw VB 360
VB 410 shown |
| |
| |
Vertical Metal Band Saws with Proven Solid Construction, including Band Saw Blade Welder
- torsionally rigid steel construction
- table tilts ±15° in all directions
- increased cutting precision
- functional and practical design
- high-precision blade guides with carbide-tipped back-roller
- blow-out feature results in improved cut control
- replaceable plastic bandage
- hand wheel for quick blade tension adjustments
- blade welder with stress relief, saw-shears, grinding stone, chip box
Specifications - VB 360 - Vertical Metal Band Saw
| cutting capacities |
|
| cutting capacity height x throat |
230x355 mm |
| cutting speed |
20 - 90 m/min |
| working area |
|
| table dimensions |
500x400 mm |
| table-adjustment |
15 ° |
| table height |
960 mm |
| drive capacity |
|
| motor rating main drive |
0,75 kW |
| motor rating grinding |
0,09 kW |
| blade welder capacity |
2,4 kVA |
| supply voltage |
400 V |
| measures and weights |
|
| blade length |
2870 mm |
| blade width |
3 - 16 mm |
| overall dimensions |
360x690x1735 mm |
| weight |
250 kg |
Standard equipment - VB 360 - Vertical Metal Band Saw
1 saw blade, saw band welder assembly, work lamp
Accessories / Tools - VB 360 - Vertical Metal Band Saw
VB 360
- Saw Blade / VB 360 (10 T/')
- Saw Blade / VB 360 (10 T/')
- Saw Blade / VB 360 (14 T/')
- Saw Blade / VB 360 (14 T/')
- Saw Blade / VB 360 (22 T/')
- Saw Blade / VB 360 (22 T/')
|
