Knuth CNC Press Brake AHK F 41250 CNC

Knuth AHK F 41250 CNC

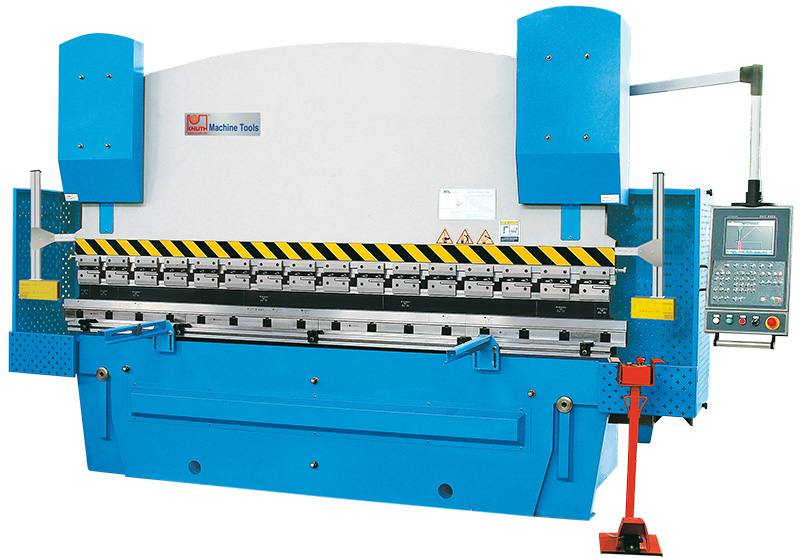

AHK F 4116 CNC shown

Heavy-duty Press Brake with state-of-the-art Cybelec 880 S CNC Control

  • 4 controlled axes with color graphics display
  • controlled hydraulic lower crowning
  • Folding depth adjustment via CNC-controlled directional control valve is monitored by linear scales
  • Bending force is calculated via CNC control and can be integrated into the programs
  • automatic lower crowning with hydraulic drive
  • Low-maintenance rear stop with preloaded ball screws and servo drives, plus automatic depth and height adjustment
  • Fiessler Safety Technology ensures maximum operator safety and optimum operation
  • Manual male die crowning within tool clamping is standard
  • Premium components made by renown manufacturers ensure maximum machine reliability

System male dies with 90°, 88°, 60° and 30° angles, plus clamping and radius tools upon request - many types of tools can be shipped within 24 hours

Specifications - AHK F 41250 CNC - CNC Press Brake

working area
pressure force 250 t
brake length 4100 mm
rear stop 600 mm
distance between columns 3600 mm
throat 400 mm
stroke length, max. 570 mm
bending speed 7,5 mm/s
rapid feed 6000 mm/min
return speed 95 mm/s
drive capacity
motor rating 18,5 kW
measures and weights
hydraulic tank volume 930 l
overall dimensions 4300x2000x2980 mm
weight 17000 kg


Control - AHK F 41250 CNC - CNC Press Brake

Cybelec DNC 880 S

  • Intuitive programming with clear, easy to read color-coded field functions
  • Complete programming of parts on one programming page
  • Comfortable operation via ergonomically tilted keyboard and 10“ TFT color monitor
  • Offline 2-D software to prepare production programs at the PC, and to verify the feasibility of program editing at the machine
  • Quick and easy modification of existing machining programs increases productivity
  • 2-D graphic display for multiple simulations: - optimum folding sequences - tools, plus the plate position inside the tools - collision warnings are displayed according to the user-defined criteria
  • Supports over 20 languages

Standard equipment - AHK F 41250 CNC - CNC Press Brake

4 controlles axes Y1, Y2, X, R, automatic lower crowning, safety system (make Fiessler), die, male die, support arms, operating tools, operator manual
