Knuth Eccentric Press KEX 30 P


33.389,50 EURplus 19 % tax, excl. Shipping costs



Product No.:
131393
Shippingtime:
Weight per unit:
1600 kg

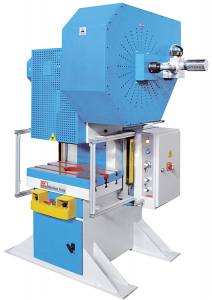

Knuth Eccentric Press KEX 30 P

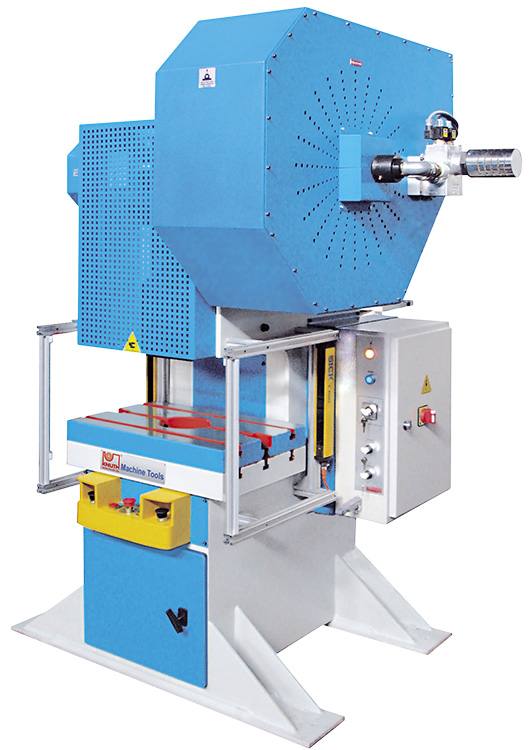

Knuth KEX 30 P

shown with pneumatic clutch, 2-hand control, and light barrier

Compact, powerful Single-Column Eccentric Presses with 30 ton force

including pneumatic clutch, two-hand control and light barrier for operations with open tools

  • heavy-duty steel weldment
  • high number of strokes per minute ensures cost-effective operation
  • brass/steel ram guide
  • foot switch
  • quiet operation
  • central lubrication

Specifications - KEX 30 P - Eccentric Press

working area
pressure force 30 t
base plate-to-ram distance 290 mm
table-ram distance 215 mm
stroke 60 mm
stroke adjustment 10 - 60 mm
table set up area 400x600 mm
reach at ram-plate center 200 mm
ram mount diameter 40 mm
stroke number 140 rpm
table bore diameter 150 mm
flywheel diameter 710 mm
drive capacity
motor rating 3 kW
measures and weights
overall dimensions 790x1025x1965 mm
weight 1600 kg



Standard equipment - KEX 30 P - Eccentric Press

mechanical overload protection, foot pedal, central lubrication, workspace enclosure, operating tools, operator manual
