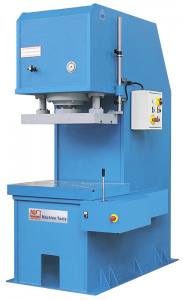

Knuth Hydraulic C-Frame Press  HPK 40

HPK 100shown


Die Press and Try-Out Press

  • strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
  • ideal for die pressing, blanking, bending and much more
  • semi-automatic with lever and micro-switch
  • stroke length with quick adaption to next tool
  • ram plate and work table with T-slots for tool clamping
  • firmly bolted work table
  • advance and reverse jog operation for easy machine set-up
  • stroke limit adjustable by micro-switch
  • optimum table height
  • 2-stage hydraulic pump


Specifications - HPK 40 - Hydraulic C-Frame Press

working area
pressure force 40 t
table dimensions 700x500 mm
stroke length, max. 500 mm
ram-plate size 700x350 mm
stroke speed 4 mm/s
rapid feed 1740 mm/min
measures and weights
overall dimensions 1000x1500x2500 mm
weight 2050 kg



Standard equipment - HPK 40 - Hydraulic C-Frame Press

ram plate and work table with T-slots, adjustable ram stroke, pressure gauge, manual control lever, operator manual
