Knuth Hydraulic C-Frame Press HPK 70

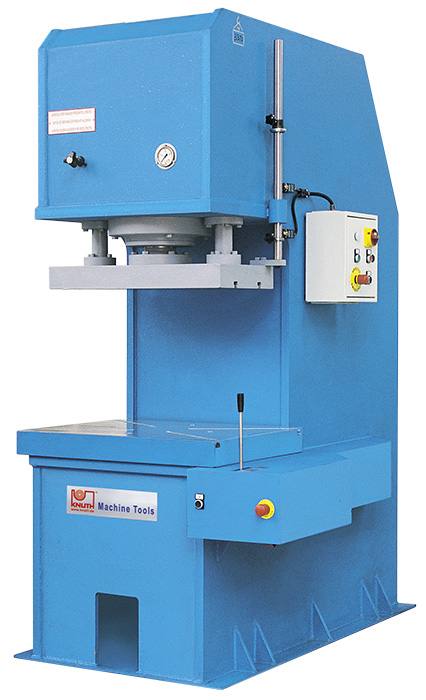

HPK 100shown |
| |
|
Die Press and Try-Out Press
- strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
- ideal for die pressing, blanking, bending and much more
- semi-automatic with lever and micro-switch
- stroke length with quick adaption to next tool
- ram plate and work table with T-slots for tool clamping
- firmly bolted work table
- advance and reverse jog operation for easy machine set-up
- stroke limit adjustable by micro-switch
- optimum table height
- 2-stage hydraulic pump
|
| |
Specifications - HPK 70 - Hydraulic C-Frame Press
| working area |
|
| pressure force |
70 t |
| table dimensions |
700x500 mm |
| stroke length, max. |
500 mm |
| ram-plate size |
700x350 mm |
| stroke speed |
2 mm/s |
| rapid feed |
1200 mm/min |
| measures and weights |
|
| overall dimensions |
1000x1500x2500 mm |
| weight |
2200 kg |
|
| |
| |
Standard equipment - HPK 70 - Hydraulic C-Frame Press
ram plate and work table with T-slots, adjustable ram stroke, pressure gauge, manual control lever, operator manual
|
| |
