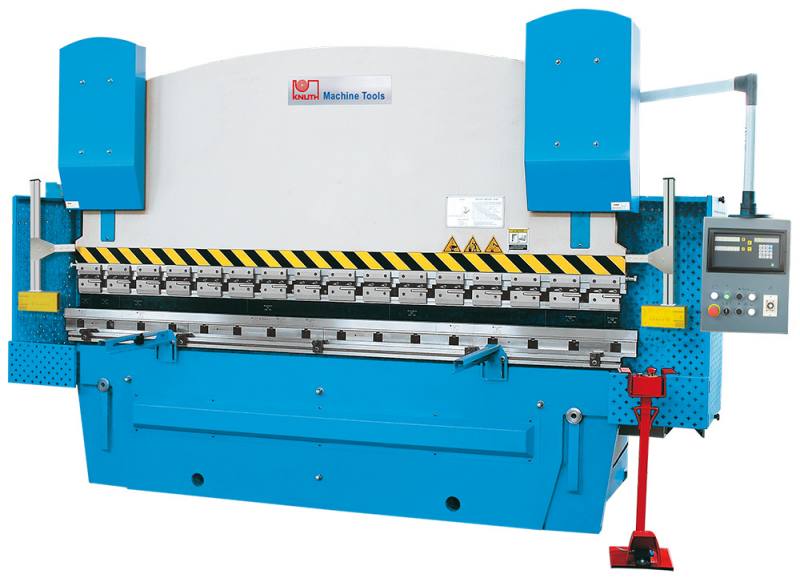

Knuth Hydraulic Press Brake AHK A 32320


0,00 EURplus 19 % tax, excl. Shipping costs



Product No.:
171306
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
17100 kg



Knuth Hydraulic Press Brake AHK A 32320

Knuth AHK A 32320

Constant angular accuracy! Heavy press with hydraulic lower table crowning


  • hydraulic lower crowning for significantly increased productivity
  • digital indicator for rear and depth stops
  • The press brakes of this series are manufactured in standardized bulk series to ensure solid quality and significant cost savings
  • The frame is made of solid steel weldment for overhead mounting
  • Manual upper and hydraulic lower crowning ensure high manufacturing qualtiy.
  • Large torsion shaft guarantees synchronism between both hydraulic cylinders.
  • Motorized rear stop with manual micro-adjustments
  • Motors (from ABB) and hydraulic components from renown manufacturers guarantee high machining quality and high reliability.
  • Fulfills highest safety standards with Fiessler Safety System, safety interlock, and protective covers
  • hardened hydraulic cylinders for long service life

System male dies with 90°, 88°, 60° and 30° angles, plus clamping and radius tools upon request - many types of tools can be shipped within 24 hours

Specifications - AHK A 32320 - Hydraulic Press Brake

working area
pressure force 320 t
brake length 3200 mm
rear stop 600 mm
distance between columns 2700 mm
throat 400 mm
stroke length, max. 250 mm
bending speed 9 mm/s
rapid feed 80 mm/s
return speed 65 mm/s
drive capacity
motor rating 22 kW
measures and weights
hydraulic tank volume 700 l
overall dimensions 3400x2150x3245 mm
weight 17100 kg



Standard equipment - AHK A 32320 - Hydraulic Press Brake

E-position indicator, rear stop, support arms, standard punch and die, safety system (make Fiessler), foot pedal, operator manual
