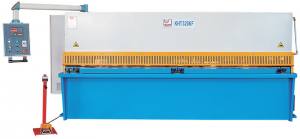

Knuth Hydraulic Shear KHT 4006 F BHV

Rigid, reliable and user-friendly

E-20+ control - easy to program rear stop and kerf setting

  • machine frame and cutter bar are designed with extremely solid, carefully machined weldment structures to withstand highest loads
  • The proven swing beam design allows small knife angles for maximum cut quality and minimum distortion at the workpiece
  • a rigid rear stop with premium preloaded ball screws and lowmaintenance linear guides ensure long-term dimensional stability of the workpiece
  • shadow projection indicates cut line
  • hydraulically operated hold-down provides uniform and reliable fixation of the workpiece
  • infinitely adjustable cut length saves valuable time when producing small parts
  • Premium hydraulic and electric components ensure safe operation and high availability
  • The pneumatic plate hold-up fixture provide perfect support for thin plates

Specifications - KHT 4006 F BHV - Hydraulic Shear

working area
plate thickness St. 42 (max.) 6 mm
cutting length 4000 mm
rear stop 560 mm
cutting angle 1,5 °
strokes per minute 15 H/min
hold-down 18 Pieces
work table height 800 mm
support arms 1060 mm
number of support arms 4 Pieces
drive capacity
motor rating hydraulic pump 7,5 kW
measures and weights
hydraulic tank volume 380 l
overall dimensions 4630x1850x1700 mm
weight 8900 kg





Control - KHT 4006 F BHV - Hydraulic Shear

E-20+ Steuerung

Standard equipment - KHT 4006 F BHV - Hydraulic Shear

E-20+ control, powered rear stop, motorized kerf adjustment, standard upper and lower knife, 3 support arms with measuring scale, lateral stop, foot pedal, shadow graph display of cut line, operator manual
