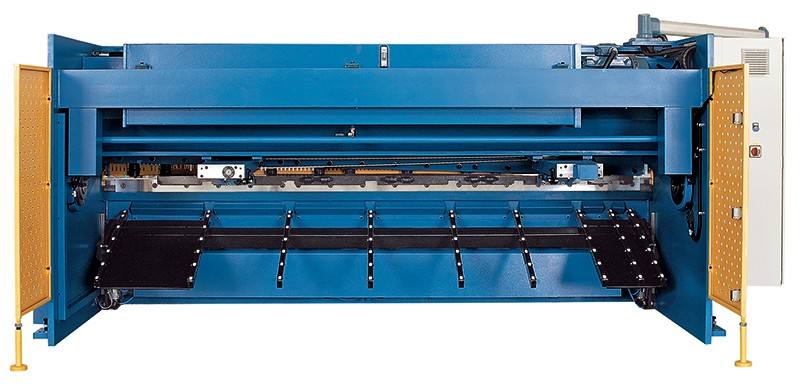

Knuth KHT 3212 F Hydraulic Swing-Beam Plate Shears
Rigid, reliable and user-friendly
|
Knuth KHT 3212 F Hydraulic Swing-Beam Plate Shears:
NEW: NC-controlled positioning for rear stop, kerf and cut length ensures quick and safe operations with high accuracy
- machine frame and cutter bar are designed with extremely solid, carefully machined weldment structures to withstand highest loads
- The proven swing beam design allows small knife angles for maximum cut quality and minimum distortion at the workpiece
- a rigid rear stop with premium preloaded ball screws and lowmaintenance linear guides ensure long-term dimensional stability of the workpiece
- shadow projection indicates cut line
- hydraulically operated hold-down provides uniform and reliable fixation of the workpiece
- infinitely adjustable cut length saves valuable time when producing small parts
- Premium hydraulic and electric components ensure safe operation and high availability
|
Specifications - Knuth KHT 3212 F Hydraulic Swing-Beam Plate Shears:
Working area
Plate thickness (max.)
Working length
Rear stop
Cutting angle
Strokes per minute
Hold-down
Work table height
Support arms
Number of support arms
|
12 mm
3.200 mm
800 mm
1,5 °
9 H/min
15 Pieces
810 mm
1.450 mm
3 Pieces
|
Drive capacity
Motor rating hydraulic pump
|
18,5 kW
|
Measures and weights
Hydraulic tank volume
Overall dimensions
Weight
|
550 l
3.945x2.270x2.240 mm
12.500 kg
|
|
