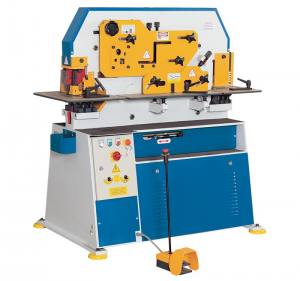

Knuth HPS 45 S Hydraulic Structural Steel Cutters

Product No.:
131170
Price on request,

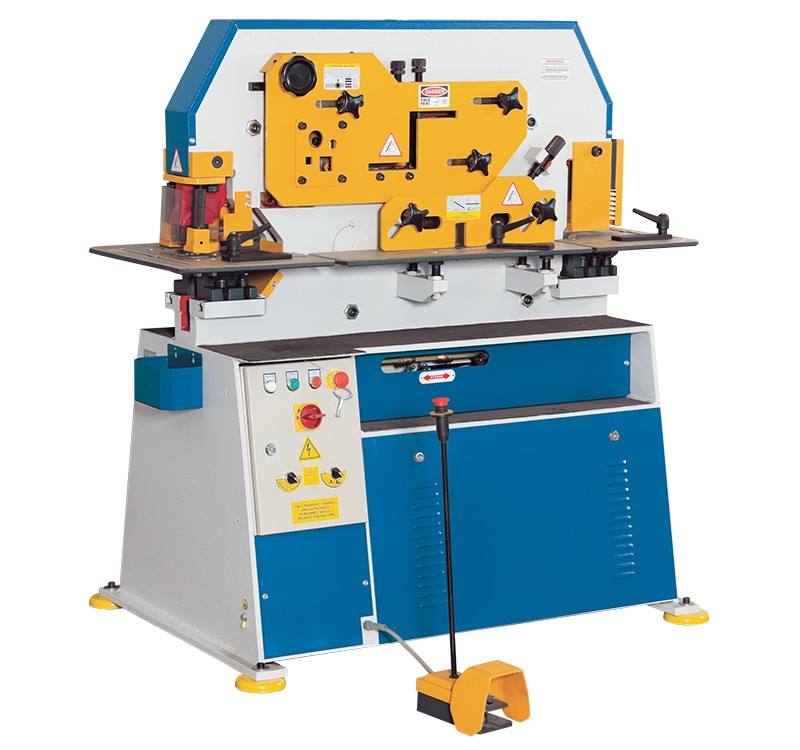

Knuth HPS 45 S Hydraulic Structural Steel Cutters

Universal machining on up to 5 work stations: Punching - cutting - notching

Knuth HPS 45 S Hydraulic Structural Steel Cutters:

also as 1-cylinder version

Flat Steel Cutters

  • For strip steel, flat steel, wide flat steel
  • table with angular and linear stops
  • Adjustable hold-down
  • lower knife provides 4 cutting edges

Angular Profile Steel Cutters

  • For angle steel sections
  • Cut angle 90° and 45°
  • Adjustable material guide plate

Rod Steel Station

  • For round and square steel
  • Robust material guide plate

Hole Punch Station

  • For punching round holes and slots in sheet metals, flat steel and U-section steel
  • Table with adjustable angular stops
  • infinitely variable stroke adjustment
  • including adapter for "Peddinghaus" stamps and dies
  • Hydraulic overload protection

Notching Station

  • Rigid support table with adjustable stops



Knuth HPS 45 S Hydraulic Structural Steel Cutters:





Punch press

Pressure force

Punch capacity (max.)

Diameter x thickness

Throat

Stroke

Stroke number (at 20 mm stroke)

Working height



45 t

Ø22x15 mm

38x8 mm

175 mm

50 mm

20 H/min

935 mm

Steel cutter

Cutting capacity flat (max. width)

Cutting capacity flat (max. thickness)

Knife length

Cutting capacity round

Cutting capacity square

Steel cutter working height





300x12 mm

200x15 mm

316 mm

30 mm

25 mm

935 mm



Profile cutter

Cutting capacity 90°

Cutting capacity 45°

Profile cutter working height



100x100x10 mm

70x6 mm

1.140 mm

Notcher

Plate thickness (max.)

Width

Depth



8 mm

35 mm

75 mm

Drive capacity

Motor rating hydraulic pump



4 kW

Measures and weights

Overall dimensions

Weight





1.430x950x1.680 mm

1.165 kg
