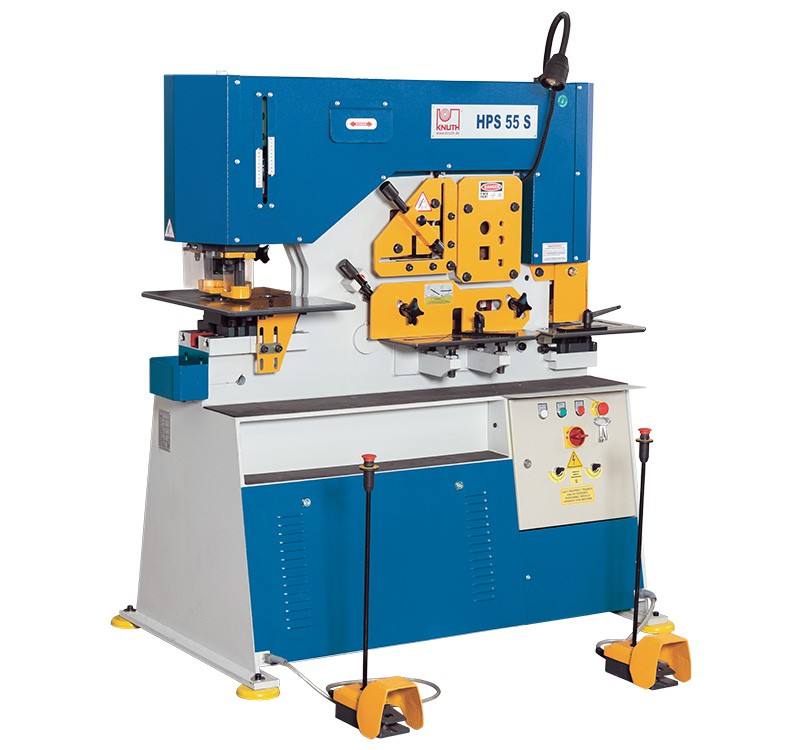

Knuth HPS 55 S Hydraulic Structural Steel Cutters


Price on request


Product No.:
131172

Knuth HPS 55 S Hydraulic Structural Steel Cutters

Universal machining on up to 5 work stations: Punching - cutting - notching

Knuth HPS 55 S Hydraulic Structural Steel Cutters:

with hydraulic cylinders allows simultaneous operation at 2 stations

Flat Steel Cutters

  • For strip steel, flat steel, wide flat steel
  • table with angular and linear stops
  • Adjustable hold-down
  • lower knife provides 4 cutting edges

Angular Profile Steel Cutters

  • For angle steel sections
  • Cut angle 90° and 45°
  • Adjustable material guide plate

Rod Steel Station

  • For round and square steel
  • Robust material guide plate

Rear stop

  • Automatic cut activation
  • Including swivel boom
  • For use on Flat Steel, Angular Steel and Rod Steel Stations

Hole Punch Station

  • For punching round holes and slots in sheet metals, flat steel and U-section steel
  • Table with adjustable angular stops
  • Linear stop and scale
  • infinitely variable stroke adjustment
  • including adapter for "Peddinghaus" stamps and dies
  • Hydraulic overload protection

Notching Station

  • Rigid support table with adjustable stops



Knuth HPS 55 S Hydraulic Structural Steel Cutters:





Punch press

Pressure force

Punch capacity (max.)

Diameter x thickness

Throat

Stroke

Stroke number (at 20 mm stroke)

Working height



55 t

Ø40x10 mm

20x20 mm

255 mm

60 mm

25 H/min

1.030 mm

Steel cutter

Cutting capacity flat (max. width)

Cutting capacity flat (max. thickness)

Knife length

Cutting capacity round

Cutting capacity square

Steel cutter working height





300x15 mm

200x20 mm

317 mm

40 mm

40 mm

900 mm



Profile cutter

Cutting capacity 90°

Cutting capacity 45°

Profile cutter working height



120x120x12 mm

70x10 mm

1.130 mm

Notcher

Plate thickness (max.)

Width

Depth



10 mm

45 mm

90 mm

Drive capacity

Motor rating hydraulic pump



5,5 kW

Measures and weights

Overall dimensions

Weight





1.500x950x1.180 mm

1.520 kg
