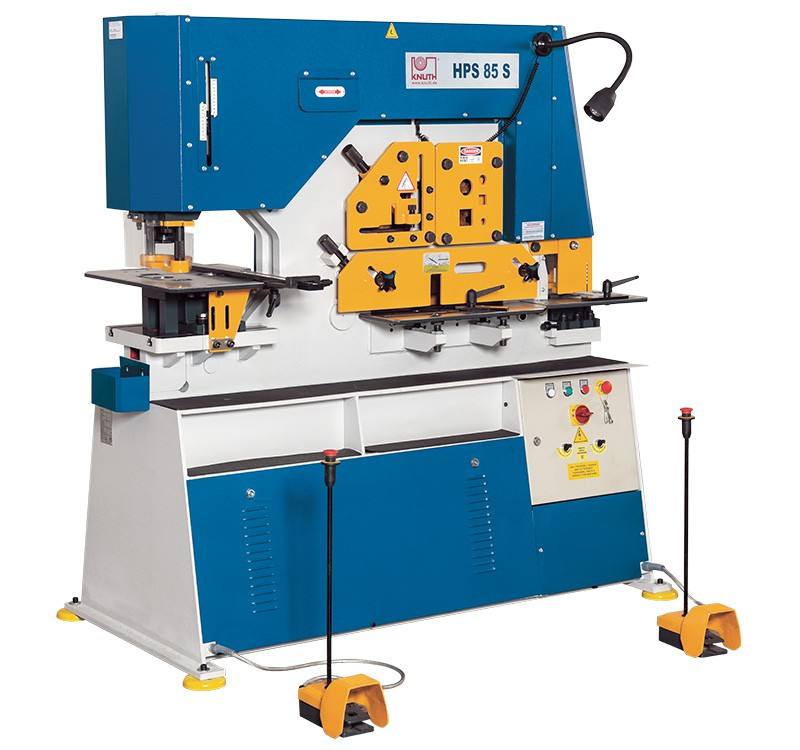

Knuth HPS 85 S Hydraulic Structural Steel Cutters
Universal machining on up to 5 work stations: Punching - cutting - notching
|
Knuth HPS 85 S Hydraulic Structural Steel Cutters:
with hydraulic cylinders allows simultaneous operation at 2 stations
Flat Steel Cutters
- For strip steel, flat steel, wide flat steel
- table with angular and linear stops
- Adjustable hold-down
- lower knife provides 4 cutting edges
Angular Profile Steel Cutters
- For angle steel sections
- Cut angle 90° and 45°
- Adjustable material guide plate
Rod Steel Station
- For round and square steel
- Robust material guide plate
Rear stop
- Automatic cut activation
- Including swivel boom
- For use on Flat Steel, Angular Steel and Rod Steel Stations
Hole Punch Station
- For punching round holes and slots in sheet metals, flat steel and U-section steel
- Table with adjustable angular stops
- Linear stop and scale
- infinitely variable stroke adjustment
- including adapter for "Peddinghaus" stamps and dies
- Hydraulic overload protection
Notching Station
- Rigid support table with adjustable stops
|
|
Specifications - Knuth HPS 85 S Hydraulic Structural Steel Cutters:
|
Punch press
Pressure force
Punch capacity (max.)
Diameter x thickness
Throat
Stroke
Stroke number (at 20 mm stroke)
Working height
|
85 t
Ø57x12 mm
33x20 mm
355 mm
80 mm
25 H/min
1.080 mm
|
|
Steel cutter
Cutting capacity flat (max. width)
Cutting capacity flat (max. thickness)
Knife length
Cutting capacity round
Cutting capacity square
Steel cutter working height
|
480x15 mm
380x20 mm
482 mm
50 mm
50 mm
940 mm
|
|
Profile cutter
Cutting capacity 90°
Cutting capacity 45°
Profile cutter working height
|
150x150x15 mm
80x8 mm
1.200 mm
|
|
Notcher
Plate thickness (max.)
Width
Depth
|
13 mm
52 mm
100 mm
|
|
Drive capacity
Motor rating hydraulic pump
|
7,5 kW
|
|
Measures and weights
Overall dimensions
Weight
|
1.920x950x2.040 mm
2.315 kg
|
|
