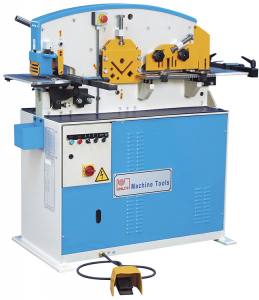

Knuth Hydraulic Structural Steel Cutter HPS 45 D
Knuth HPS 45 D
|
Universal Machining Operations at 5 Work Stations:
Punching, Cutting, Notching with 45 t Capacity
Flat Steel Cutters
- lower knife provides 4 cutting edges
- table with angular and linear stops
Angular Profile Steel Cutters
- rear stop adjustable up to 1000 mm, manual
Rod Steel Station
- hold-down for round and square steel
- rear stop 1000 mm
Hole Punch Station
- for punching sheet metals, flat steel and U-section steel
- heavy-duty table ensures high-quality punching results
- infinitely variable stroke adjustment
- including adapter for "Peddinghaus" stamps and dies
- hydraulic overload valves
Notching Station table with scales and stop
|
Specifications - HPS 45 D - Hydraulic Structural Steel Cutters
punch press |
|
pressure force |
45 t |
punch capacity (max.) |
Ø27x13 mm |
table dimensions |
450x160 mm |
diameter x thickness |
18x18 mm |
throat |
160 mm |
stroke |
21 mm |
stroke number (at 20 mm stroke) |
20 H/min |
working height |
1010 mm |
steel cutter |
|
cutting capacity flat (max. width) |
300x10 mm |
cutting capacity flat (max. thickness) |
200x13 mm |
knife length |
305 mm |
cutting capacity round |
30 mm |
cutting capacity square |
30 mm |
steel cutter working height |
1010 mm |
profile cutter |
|
cutting capacity 90° |
80x80x8 mm |
profile cutter working height |
1020 mm |
notcher |
|
plate thickness (max.) |
7 mm |
width |
40 mm |
depth |
40 mm |
drive capacity |
|
motor rating hydraulic pump |
3 kW |
measures and weights |
|
overall dimensions |
1460x1400x1620 mm |
weight |
810 kg |
|
|
|
|
|
|
