Knuth Hydraulic Structural Steel Cutter HPS 55/110 D
Knuth HPS 55/110 D

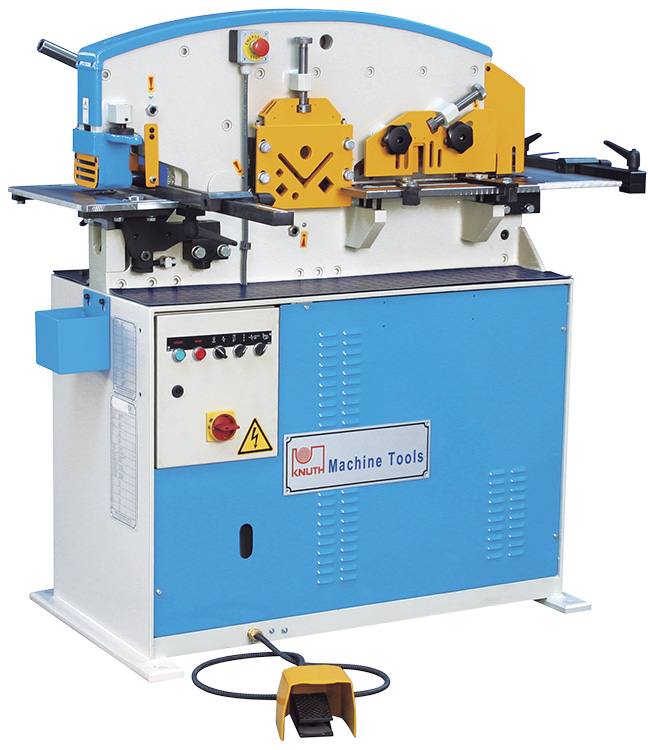

HPS 45 D shown |
Universal Machining Operations at 5 Work Stations:
Punching, Cutting, Notching with 55 t Capacity
Flat Steel Cutters
- lower knife provides 4 cutting edges
- table with angular and linear stops
Angular Profile Steel Cutters
- rear stop adjustable up to 1000 mm with automatic cut activation
Rod Steel Station
- hold-down for round and square steel
- rear stop 1000 mm
Hole Punch Station
- for punching sheet metals, flat steel and U-section steel
- heavy-duty table ensures high-quality punching results
- infinitely variable stroke adjustment
- including adapter for "Peddinghaus" stamps and dies
- hydraulic overload valves
Notching Station table with scales and stop
Flat Steel Cutters
- lower knife provides 4 cutting edges
- table with angular and linear stops
Angular Profile Steel Cutters
- rear stop adjustable up to 1000 mm with automatic cut activation
Rod Steel Station
- hold-down for round and square steel
- rear stop 1000 mm
Hole Punch Station
- for punching sheet metals, flat steel and U-section steel
- heavy-duty table ensures high-quality punching results
- infinitely variable stroke adjustment
- including adapter for "Peddinghaus" stamps and dies
- hydraulic overload valves
Notching Station table with scales and stop
|
Specifications - HPS 55/110 D - Hydraulic Structural Steel Cutters
punch press |
|
pressure force |
55 t |
punch capacity (max.) |
Ø40x10 mm |
table dimensions |
550x250 mm |
diameter x thickness |
20x20 mm |
throat |
250 mm |
stroke |
60 mm |
stroke number (at 20 mm stroke) |
37 H/min |
working height |
1080 mm |
steel cutter |
|
cutting capacity flat (max. width) |
300x15 mm |
cutting capacity flat (max. thickness) |
200x20 mm |
knife length |
305 mm |
cutting capacity round |
40 mm |
cutting capacity square |
40 mm |
steel cutter working height |
890 mm |
profile cutter |
|
cutting capacity 45° |
70x70x7 mm |
cutting capacity 90° |
120x120x10 mm |
profile cutter working height |
1100 mm |
notcher |
|
plate thickness (max.) |
10 mm |
width |
42 mm |
depth |
42 mm |
drive capacity |
|
motor rating hydraulic pump |
5,5 kW |
measures and weights |
|
overall dimensions |
1480x1800x1730 mm |
weight |
1300 kg |
|
|
|
|
|
|
