Knuth Motorized Swing-Beam Shear KMT 2550


14.499,90 EURplus 19 % tax, excl. Shipping costs



Product No.:
130236
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
1350 kg




Knuth Motorized Swing-Beam Shear KMT 2550

Knuth KMT 2550

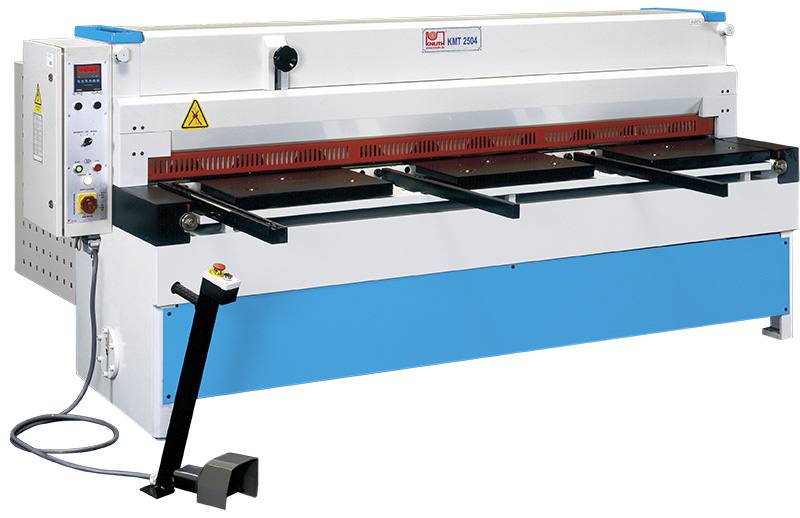

KMT 2504 shown

Rigid motorized swing-beam shear in a cost-effective design for cutting 2,5 mm steel plates to a length of 2550 mm


  • heavy steel weldment construction for maximum stability
  • quiet drive with brake motor; all components run on maintenance-free bearings
  • parallel knife guides ensure high cutting precision
  • high-strength knives made of steel alloy, hardened and ground
  • side stop and 2 front support arms
  • selection switch for single and continuous stroke
  • hold-down system with slip-resistant rubber coating and engagement safety guard
  • cost-effective design with precision-machined machine table
  • manual rear stop 450 mm

Specifications - KMT 2550 - Motorized Swing-Beam Shears

working area
plate thickness St. 42 (max.) 2,5 mm
cutting length 2550 mm
rear stop 450 mm
cutting angle 1,5 °
strokes per minute (automatic mode) 35 H/min
work table height 850 mm
drive capacity
motor rating main drive 3 kW
measures and weights
overall dimensions 2900x1350x1200 mm
weight 1350 kg



Standard equipment - KMT 2550 - Motorized Swing-Beam Shears

knife set, rear stop, CE-conforming safety features, foot pedal, right-hand longitudinal stop and 2 support arms
