Knuth Motorized Swing-Beam Shear KMT 2552


13.754,50 EURplus 19 % tax, excl. Shipping costs



Product No.:
130243
Shippingtime:
Weight per unit:
2130 kg

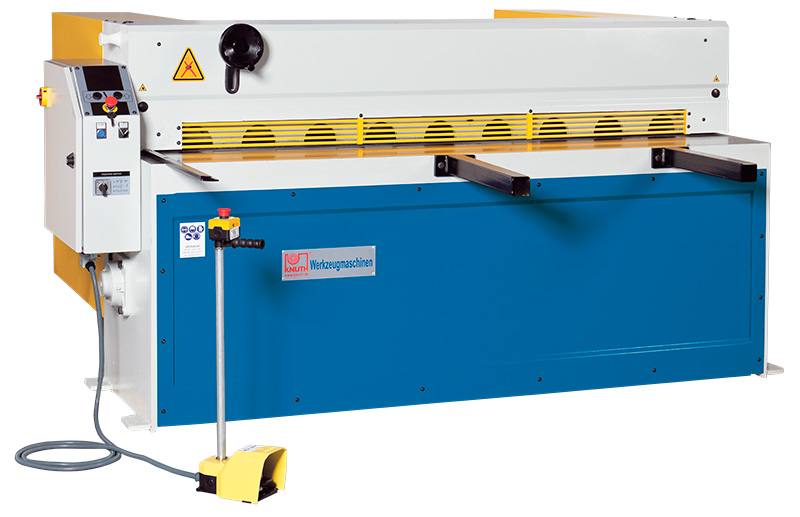

Knuth Motorized Swing-Beam Shear KMT 2552

KMT 2053 shown



Premium components, superior rigidity,
and easy operation


  • Heavy-duty steel weldment for maximum stability and torsional rigidity
  • Direct drive - low-noise main drive with brake motor
  • Side stop and rigid front support arms are included, optional angular stop
  • hold-down system with slip-resistant rubber coating and engagement safety guard
  • robust precision-machined table
  • Manual rear stop with 750 mm travel and preloaded ball screw, controlled from front
  • Safety light curtain ensures maximum protection in the work space at the rear of the machine
  • Foot switch for easy, application-specific operability

Specifications - KMT 2552 - Motorized Swing-Beam Shears

working area
plate thickness (max.) 2,5 mm
working length 2550 mm
rear stop 750 mm
cutting angle 1° 30’
strokes per minute (automatic mode) 35 H/min
work table height 850 mm
drive capacity
motor rating main drive 3 kW
measures and weights
overall dimensions 3000x1800x1320 mm
weight 2130 kg

Standard equipment - KMT 2552 - Motorized Swing-Beam Shears

knife set, rear stop, lateral stop, CE-conforming safety features, foot pedal, right-hand longitudinal stop and 2 support arms
