Knuth 3-Roller Motorized Roll Bending Machine KRM 15/4,0
|

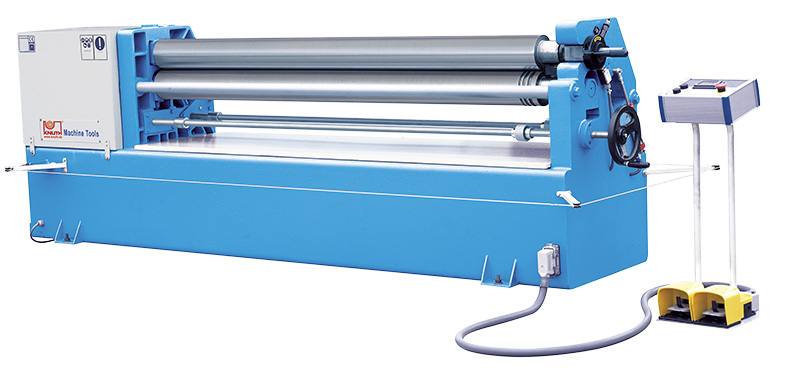

KRM 10/4.0 with Optional Equipment (motor. rear roll adjustment) shown |
|
|
Modern design, user-friendly machine with asymetrical mounted rolls
- hardened rollers, suitable for stainless steel
- motor driven left/right direction, operated with foot switch
- hand wheel for rear roll feed
- quick adjusting rolls (motor-driven, option)
- standard series wire core groove
- top roll swings out across cam lock
- supplied with conical bending feature
|
|
Specifications - KRM 15/4,0 - 3-Roller Roll Bender
working area |
|
working length |
1550 mm |
plate thickness (max.) |
4,5 mm |
max. plate thickness for bending |
4 mm |
bending diameter |
190 mm |
roll diameter |
130 mm |
drive capacity |
|
motor rating |
2,2 kW |
measures and weights |
|
overall dimensions |
2320x900x1200 mm |
weight |
1360 kg |
For cone bending, all bending values must be reduced 50 %. Hardened rollers are advisable. |
|
For conical bending, reduce all bend values by 50 % |
|
|
|
|
Accessories / Tools - KRM 15/4,0 - 3-Roller Roll Bender
Digital Display |
Motorized Rear Roll Adjustment |
|
|
|
|
|
|
