Knuth Hydraulic 3-Roller Roll Bending Machine KRB 2013

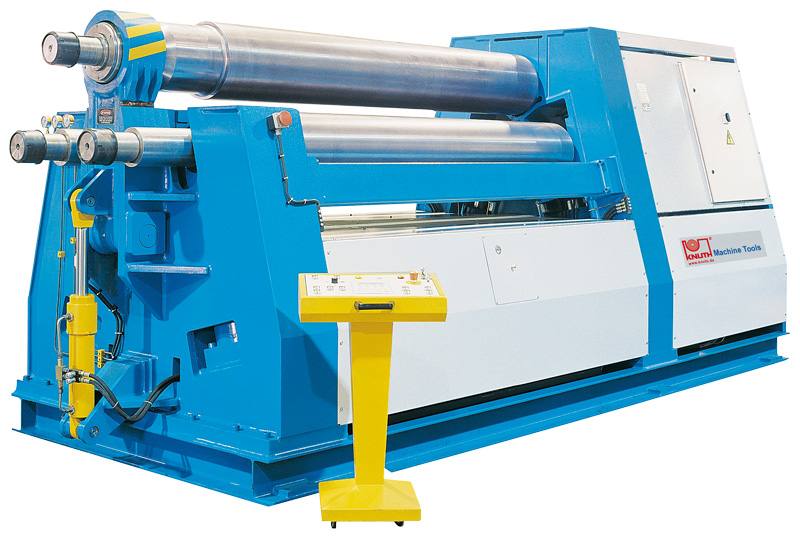

KRB 2010 shown |
|
|
Perfect and easy roll bending up to 16 mm on 2600 mm length
- hardened rollers, suitable for stainless steel
- 3 separate hydraulics for drive motors and planetary gears
- hydraulically operated safety clutch and support bearings
- hydraulic roller feed and parallelism adjustment
- all rolls supported by roller bearings
- overload protection
- hydraulic components from Parker / Bosch
- electric components from Siemens / Telemanique
- minimum bending diameter = 3 x Ø of the top roller
|
|
Specifications - KRB 2013 - Hydraulic 3-Roller Roll Bending Machine
working area |
|
working length |
2100 mm |
plate thickness (max.) |
16 mm |
max. plate thickness for bending |
13 mm |
upper roll diameter |
270 mm |
side roll diameter |
250 mm |
drive capacity |
|
motor rating hydraulic pump |
11 kW |
measures and weights |
|
overall dimensions |
4180x1440x1384 mm |
weight |
5250 kg |
For cone bending, all bending values must be reduced 50 %. Hardened rollers are advisable. |
|
For conical bending, reduce all bend values by 50 % |
|
|
|
Standard equipment - KRB 2013 - Hydraulic 3-Roller Roll Bending Machine
hardened rollers, conical bending feature, digital display, control panel, operator manual
|
|
|
|
|
|
