Knuth Motorized Swing-Beam Shear KMT 1553


11.444,50 EURplus 19 % tax, excl. Shipping costs



Product No.:
130241
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
1395 kg

Knuth Motorized Swing-Beam Shear KMT 1553

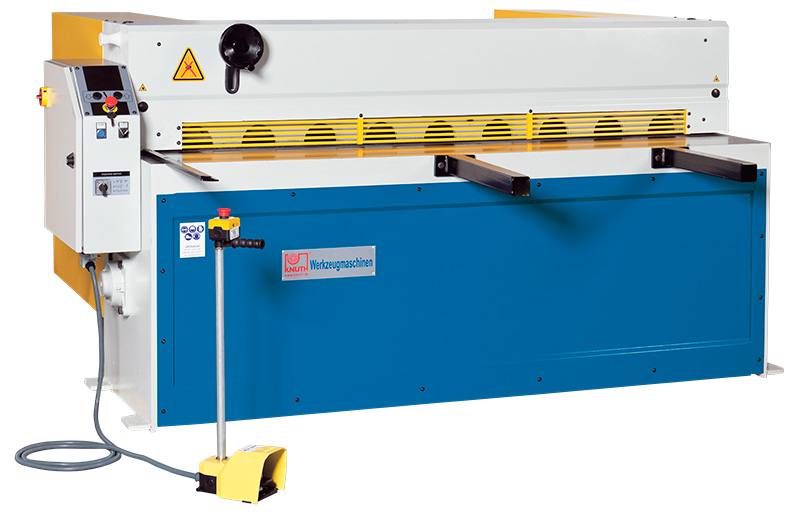

KMT 2053 shown



Premium components, superior rigidity,
and easy operation



  • Heavy-duty steel weldment for maximum stability and torsional rigidity
  • Direct drive - low-noise main drive with brake motor
  • Side stop and rigid front support arms are included, optional angular stop
  • hold-down system with slip-resistant rubber coating and engagement safety guard
  • robust precision-machined table
  • Manual rear stop with 750 mm travel and preloaded ball screw, controlled from front
  • Safety light curtain ensures maximum protection in the work space at the rear of the machine
  • Foot switch for easy, application-specific operability

Specifications - KMT 1553 - Motorized Swing-Beam Shears

working area
plate thickness (max.) 3 mm
working length 1550 mm
rear stop 750 mm
cutting angle 2° 20’
strokes per minute 35 H/min
work table height 850 mm
drive capacity
motor rating main drive 3 kW
measures and weights
overall dimensions 2000x1700x1320 mm
weight 1395 kg

Standard equipment - KMT 1553 - Motorized Swing-Beam Shears

knife set, rear stop, lateral stop, CE-conforming safety features, foot pedal, right-hand longitudinal stop and 2 support arms
