Column Drilling Machine AX 3/S 1.9 kW


6.323,14 EURplus tax excl. Shipping costs



Product No.:
AX 3/S 1.9 kW
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
260 kg


AX Bench and Column Drilling Machines

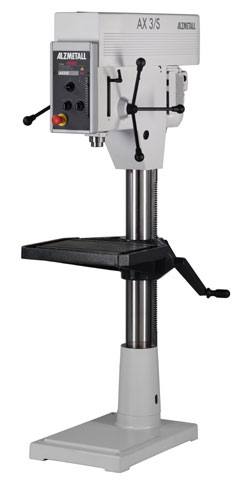

Column Drilling Machine AX 3/S 1.9 kW


TOP QUALITY drilling with complete options

Drilling Capacity in Steel E 335 St 60 40 mm

Tapping Performance
in Steel E 335 St 60 M 24
in Cast-iron EN-GJL-200 M 30

Tool Taper (short spindle) MT 3
Z-Travel of spindle 120 mm
Distance Spindle to Column 293 mm
Column Diameter 115 mm
Table Clamping area 515 x 360 mm
Distance spindle/table min./max. 117/701 mm
T-Slots (number x width x distance) 2 x 14 x 224 mm
Feeds manual
Nettogewicht ca. 260 kg
Drive System infinitely variable
Motor 1500 / 3000 Rpm
Performance 1,45 / 1,9 kW
Spindle Rpm range: 160-2250


Standard Equipment

    Main Switch (lockable) withOverload Protection Switch
    Self-Locking Mushroom Button for EMERGENCY OFF switch
    Infinitely variable speed drive
    Digital RPM Read-out
    Protection Class IP 54
    Spindle Protection with electric security
    Lacquer: DD-structured grey RAL 7035, anthracite RAL 7016,
    alu RAL 9006
