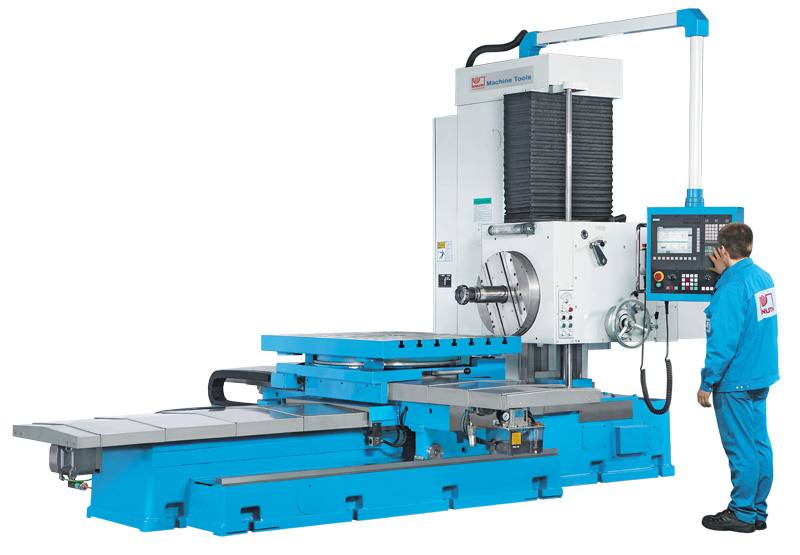

Knuth CNC Drill Unit BO 110 CNC
|
| |
|
Heavy-Duty CNC Drill Unit with Siemens 802D control for large and heavy parts
- spindle speed and facing slide speed are infinitely variable
- rotary table for a part weight up to 5 tons
- 3-axis CNC control
- telescoping steel cover protects the guides from chips and dirt
- rigid square guides are hardened and precision-ground to ensure exact work results for many years
- wide machine bed with 4 guideways for linear table movement
- precise table center support on cylindrical roller bearings
- preloaded ball screws on all feed axes
- automatic central lubrication system
- axially adjustable drill spindle with speeds up to 1100 rpm
- powerful main drive motor with 11 kW
Setup table with manual rotation
- precise table center support provided by preloaded axial/radial cylindrical roller bearings
Specifications - BO 110 CNC - CNC Drill Unit
| working area |
|
| travel X-axis |
1300 mm |
| travel Y-axis |
900 mm |
| travel Z-axis |
1200 mm |
| travel W-axis |
550 mm |
| facing slide travel |
160 mm |
| facing slide working diameter (max.) |
630 mm |
| table dimensions |
1320x1010 mm |
| table load capacity |
5000 kg |
| spindle axis-to-table surface distance |
5 - 905 mm |
| table rotation range |
360 ° |
| cutting capacity |
|
| drilling capacity, steel |
50 mm |
| finish bore |
240 mm |
| headstock |
|
| speed range |
12 - 1100 rpm |
| spindle diameter |
110 mm |
| headstock torque |
1100 Nm |
| spindle mount |
BT 50 |
| facing slide speed |
4 - 125 rpm |
| facing slide torque (max.) |
1100 Nm |
| feed force, axial (max.) |
13 kN |
| feed |
|
| rapid feed X-axis |
5000 mm/min |
| rapid feed Y-axis |
5000 mm/min |
| rapid feed Z-axis |
5000 mm/min |
| rapid feed W-axis |
2060 mm/min |
| feed speed Z-axis |
0,5 - 1000 mm/min |
| facing slide feed |
1370 mm/min |
| accuracies |
|
| positioning accuracy X-axis |
0,04 mm |
| positioning accuracy Y-axis |
0,05 mm |
| positioning accuracy Z-axis |
0,06 mm |
| repeatability X-axis |
0,015 mm |
| repeatability Y-axis |
0,015 mm |
| repeatability Z-axis |
0,015 mm |
| work table rotation accuracy |
± 6" (4x90°) |
| work table repeatability |
± 3" (4x90°) |
| drive capacity |
|
| motor rating main drive |
11 kW |
| measures and weights |
|
| overall dimensions |
5347x3020x2890 mm |
| weight |
12000 kg |
Control - BO 110 CNC - CNC Drill Unit
Siemens Sinumerik 802 D Bohren
- manual tool offsets
- One-step operation with direct access to tool data or zero offset memory
- graphical contour programming
- basic selection of contour elements for quick and easy contour generation
- graphic support for cycles
Drilling:
- centering
- deep-hole drilling
- reaming
- drilling with stop
- tapping with/without compensating chuck
- row of holes - circle
- Graphic simulation for direct program control prior to machining
- 10,TFT 4“ flat screen monitor
- 256 KB storage for parts programs
- Frames (turning, offsetting, scaling, mirroring)
- hand-wheel feature
- up to 32 tools
- RS 232 C serial interface
- PCMCIA drive, integrated into the front panel
- integrated pocket calculator function
- parts counter, timer
- Integrated help function (context-sensitive operating and programming instructions)
- Simulation / tracing in connection linked with colored user interface (option)
|
|
Standard equipment - BO 110 CNC - CNC Drill Unit
Siemens 802 D control, preloaded ball screws, central lubrication, anchor bolts, electronic hand-wheel, RS-232 interface , PC transfer software, operating manual and programming instructions
|
| |
| |
|
| |
| |
| |
| |
| |
| |
