» Scheppach Spindle moulder Molda 7 4.0kW

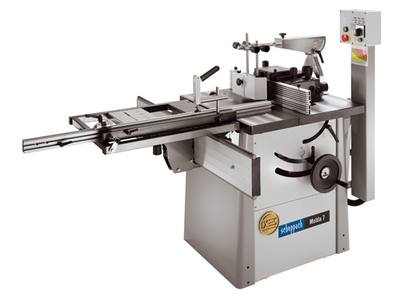

Spindle moulder Molda 7
Production Shops - your problems are solved!
This tilting Spindle moulder operates with minimum noise, plus high levels of accuracy so that the machine is not only a pleasure to operate but also satisfies everything you expect from a quality spindle moulder.
Specifications
• Three spindle operating speeds (3,000 – 6,000 – 8,300 rpm)
• Spindle travel: 100 mm
• Spindle diameter: 30 mm
• Spindle tilt: -5° to +45°
• Maximum tooling diameter: 200 mm
• Spindle usable length: 120 mm
• Max. table opening: 115/145/185 mm
• Table working height: 856 mm
• Table size: 810 x 730 mm
• Dust extraction outlet: 2 x 100 mm
• Sliding Table carriage for end grain moulding (0 – 450 mm)
Sliding table carriage
– Angle fence adjustable from 90° to 45°, with the laser cut scale
– Table size 600 x 650 mm
– Fence rail: 1,100 mm for extension of fence length to 2,000 mm
– Guid rail: 1,000 mm
Order Details
Spindle moulder Molda 7
380-420V (4.0 kW / 5.4 H.P)
Order No. 7244 0902
Scheppach © Spindle moulder Molda 7
|
|
Technische Daten
L/B/H mm
|
816/1010/1360
|
Tischgröße mm
|
810 x 730
|
Tischöffnung Ø mm
|
115/145/185
|
Spindel Ø mm
|
30
|
Höhenverstellung mm
|
100
|
Schwenkbereich °
|
-5 bis +45
|
Spindeldrehzahl 1/min
|
3000/6000/8200
|
Werkzeug-ø max. mm
|
200
|
Werkzeugeinspannhöhe mm
|
120
|
Absaugstutzen Ø mm
|
2 x 100
|
Gewicht ca. kg
|
230
|
Motorausrüstung
|
380-420 V/50 Hz
|
Aufnahmeleistung kW (PS)
|
4,0 (5,4)
|
Abgabeleistung kW (PS)
|
3,0 (4,1)
|
Drehzahl 1/min
|
2810
|
Bestell-Nr.
|
7244 0902
|
Scheppach © Fräsmaschine Molda 7
|
|
|
|
