Holzmann Four side planer VS 20/40PM


15.918,35 EURplus 16 % tax, excl. Shipping costs



Product No.:
VS 20/4PM
Shippingtime:
Weight per unit:
1300 kg

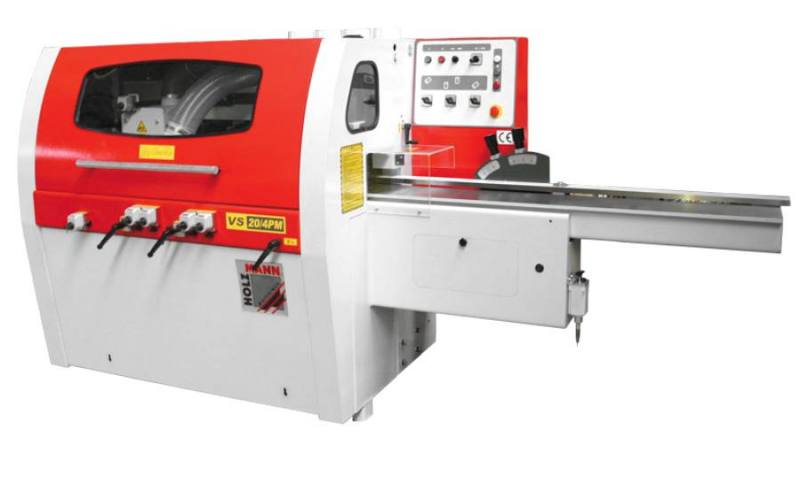

Vierseitenhobelmaschine Holzmann VS 20/4PM



 - complete with 4 cutter heads
- working spindle vertically and horizontally adjustable
- solid heavy and low vibration setup
- steel and cast iron machine
- very long work piece tables ensures a safe feeding of work pieces
- chip removal steplessly adjustable up to 10mm
- clear-positioned control panel
- precise and smooth run of the work piece feeding due to a feeding
- roller in front of the first spindle
- pressure on every feeding roller steplessly adjustable w/o tools
- spindle position adjustable via mechanical digital position indication (1/10 accuracy)

included in delivery: 4 cutter heads, tools, lubrication pumping system

available accessories: table extension 300/500mm


max. dimension of the work piece: 180/120 mm
min. dimension of the work piece: 16/7 mm
number of operating spindles: 4
spindle speed: 6000/min.
spindle diameter: 40 mm
standard diam. of tooling 1.2.3.4.: 120 mm
max. diam. of the tooling (2nd, 3rd, 4th, spindle): 180 mm
feeding speeds: 6/12 m/min
feeding table length: 1700 mm (2000)
quick adjustment feeding tabel: 10 mm

horizontal spindles motor (100%): 2x5,5kW
vertikal spindles motor (100%): 7,5kW
feeding motor (100%): 0,9 / 1,5kW
total motor power(100%): 20kW

weight: 1300 kg


Vierseitenhobelmaschine Holzmann VS 20/4PM Vierseitenhobelmaschine Holzmann VS 20/4PM Vierseitenhobelmaschine Holzmann VS 20/4PM

Vierseitenhobelmaschine Holzmann VS 20/4PM
