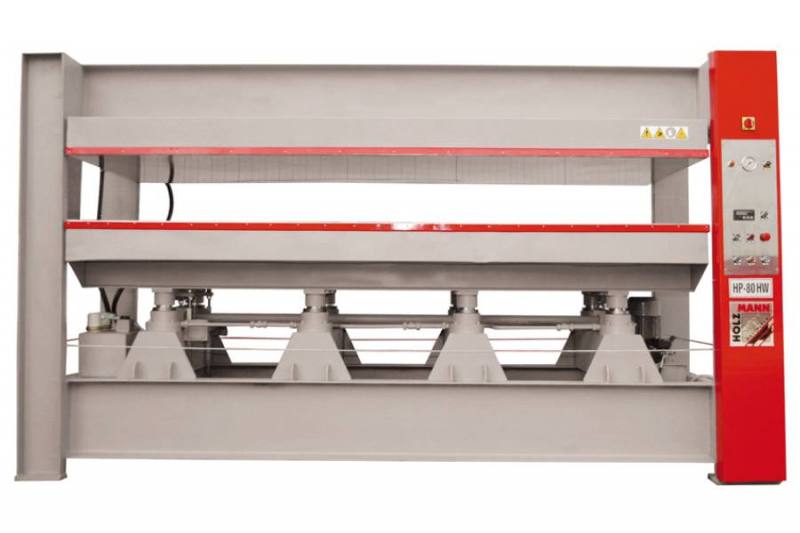

Holzmann veneer press HP 80E

The main difference of the HP70 and HP80 models to the HP20 and HP60 models is the even more solid setup.

Versions:
These types are also available in 4 different versions with 3 different heating systems.

electric heating plates:
- absolutely plane pressing area
- the pressing surface is engineered without any screws or rivets or the like
- short heat up time enables a quick useability
- heat up time (100°) approx. 10min
- especially solid and isolated plates ensure an ideal pressure- and heating transmission
- the jaw opening of the "E"-model is approx. 5cm smaller

power: 10,9 kW
voltage: 400 V
max. temp.: 120°

standard accessory: control computer (HP20/HP60/HP70/HP80)

digital indication and automatic control
automatic mode:
cycle time control with automatic plate opening function
time control for opening time
digital indication of plate temperature (only at heated presses)
