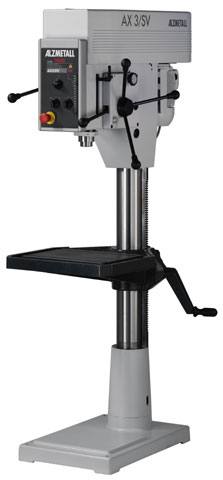

Column Drilling Machine AX 3/SV 1.1 kW

6.613,51 EURplus 19 % tax, excl. Shipping costs

Product No.:
AX 3/SV 1.1 kW
No longer available (abroad may vary)
Weight per unit:
270 kg

AX Bench and Column Drilling Machines

Column Drilling Machine AX 3/SV 1.1 kW

TOP QUALITY drilling with complete options

Drilling Capacity in Steel E 335 St 60 40 mm
Tapping Performance
in Steel E 335 St 60 M 24
in Cast-iron EN-GJL-200 M 30
Tool Taper (short spindle) MT 3
Z-Travel of spindle 120 mm
Distance Spindle to Column 293 mm
Column Diameter 115 mm
Table Clamping area 515 x 360 mm
Distance spindle/table min./max. 117/701 mm
T-Slots (number x width x distance) 2 x 14 x 224 mm
Feeds 0,1 + 0,2 mm/Rev
Nettogewicht ca. 270 kg
Drive System infinitely variable
Motor 1500 Rpm
Performance 1,1 kW
Spindle Rpm range: 160-1125
Standard Equipment

    Main Switch (lockable) withOverload Protection Switch
    Self-Locking Mushroom Button for EMERGENCY OFF switch
    Infinitely variable speed drive
    Digital RPM Read-out
    Protection Class IP 54
    Spindle Protection with electric security
    Overload feed clutch
    Machine oil
    Lacquer: DD-structured grey RAL 7035, anthracite RAL 7016,
    alu RAL 9006
