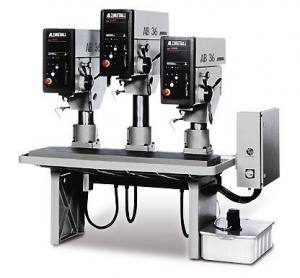

Drill Head

Main page » Alzmetall Machines drilling column » Alzmetall drilling stations » RFT 3 » » Drill Head AX 3/S 750/1500 for Alzmetall RFT 3

If you need
spare parts for Alzmetall machines
,you can request them at info@wgm-maschinen.de, to request them. Please send us a photo of the type plate or send us the type with the machine number and which spare part you require- type with machine no. and which spare part you need.

You will then receive a quotation.

Combination possibilities Alzmetall RFT 3

Price per Drill Head

Drill Head, height adjustable, 500 mm, (option 700 mm)	AX 3/S
Short spindle	MT 3
Distance Spindle to Column	293 mm
Distance Spindle Nose to Table max.	764 mm
Distance Spindle Nose to Table min.	264 mm
Travel of Spindle	120 mm
Weight	150 kg
Motor Rpm	750/1500
Performance	1,0/1,6
Spindle Rpm range	80-1125 min^-1
