» » » » » Bison 3-jaw Self-Center. Chuck with Fine Adjustment 3264-200

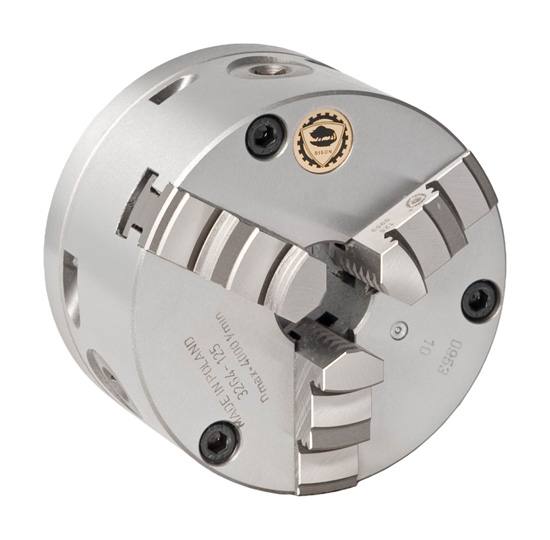

Bison 3-jaw Self-Center. Chuck with Fine Adjustment 3264-200
Lathe Chucks - Self-Centering Chucks with Fine Adjustment - 3-Jaw
|
| |
- Precision chuck
- Hard solid jaws
- Cast iron body
|
| |
- Ground working surfaces ensure sustained accuracy and repeatability
- Repeatability: 0,015 mm
- Superior accuracy: small screws on the outside enable the chuck to be adjusted to position with nearly zero run-out (adjusting accuracy within 0,005 mm)
- The clamped workpiece is adjusted to the required concentricity by means of 3 tangentially arranged adjusting screws
- Hardened adjusting screws
- This chuck is made for universal use, but is particularly advantageous for grinding machines
- Mounted on the machine tool spindle from the back of the chuck by using an adapter plate
|
| |
| Standard equipment: |
| Hard Outside Solid Jaws |
|
Hard Inside Solid Jaws |
|
Safety Wrench |
|
| |
| |
| Accessories: |
| |
| |
Hard Top Jaws |
|
Hard Master Jaws |
|
| |
