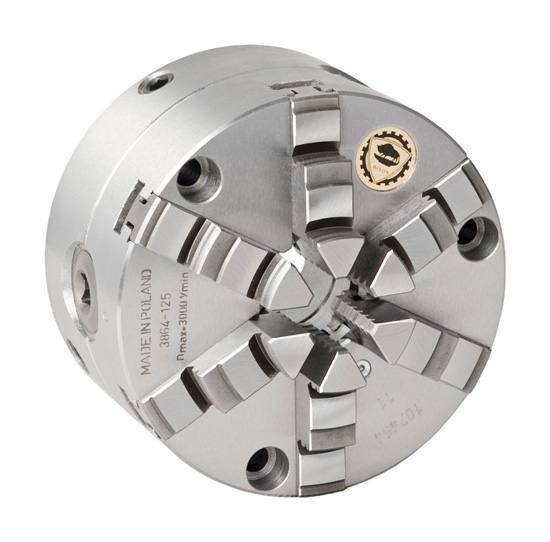

Bison 6-jaw Self-Center. Chuck with Fine Adjustment 3864-160
Lathe Chucks - Self-Centering Chucks with Fine Adjustment - 6-Jaw
|
| |
- Precision chuck
- Hard solid jaws
- Steel body
|
| |
- Steel body material provides higher rigidity and wear resistance, enabling the chuck to withstand higher machining forces
- Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability
- Balanced scroll plate allows higher rotation speeds without excess vibration
- Repeatability: 0,015 mm
- Superior accuracy: small screws on the outside enable the chuck to be adjusted to position with nearly zero run-out (adjusting accuracy within 0,005 mm)
- The clamped workpiece is adjusted to the required concentricity by means of 4 (8 for sizes 400 mm, 500 mm, 630 mm) radially arranged adjusting screws
- This precision chuck, with increased gripping accuracy, is made for universal use, but particularly advantageous for grinding machines, indexing heads and lathes
- Mounted on the machine tool spindle from the back of the chuck by using an adapter plate
|
| |
| Standard equipment: |
| Hard Outside Solid Jaws |
|
Hard Inside Solid Jaws |
|
Safety Wrench |
|
| |
| |
| Accessories: |
| |
| |
Hard Top Jaws |
|
Hard Master Jaws |
|
| |
