Bison Indexing Fixture 5911-250


0,00 EURplus tax excl. Shipping costs



Product No.:
375911160300
Shippingtime:
upon request (abroad may vary)
Weight per unit:
107 kg

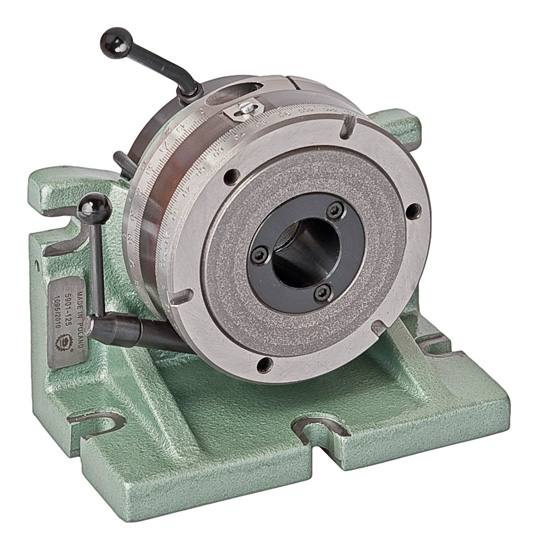

Bison Indexing Fixture 5911-250

Milling Fixtures - Rotary Tables and Indexing Fixtures


  • Horizontal / vertical indexing fixtures with interchangeable dividing plates
  • 3-jaw chuck, steel body, hard solid jaws


FEATURES:

  • Chuck not included in Type 5911
  • Please choose you desired chuck for use with Type 5911 from the table
  • Simple and compact design provides for two types of indexing:
  • 1) basic indexing - which is done by means of catch device in 2, 3, 4, 6, 8, 12 and 24 divisions
  • 2) angular indexing - which can be performed through sleeve with scale graduated in 360° in 1° increment
  • 3) alternative indexing - which can be performed by means of catch device and specified changeable
  • dividing plate (with Z=13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 or 24 units number of divisions).
  • To obtain required number of divisions replace Z=24 plate with one of the above specified plates.
  • Indexing accuracy 2’
  • True run-out of tapered centre bore 0,02 mm
  • Squareness (base to chuck) 0,02 mm
  • Parallelism over face 0,02 mm
  • Concentricity of mounting flange with precision or standard chuck 0,03÷0,06 mm
  • Dividing plate made of high quality alloy steel, hardened and ground – extending machine life
  • Body made of stabilized cast iron
