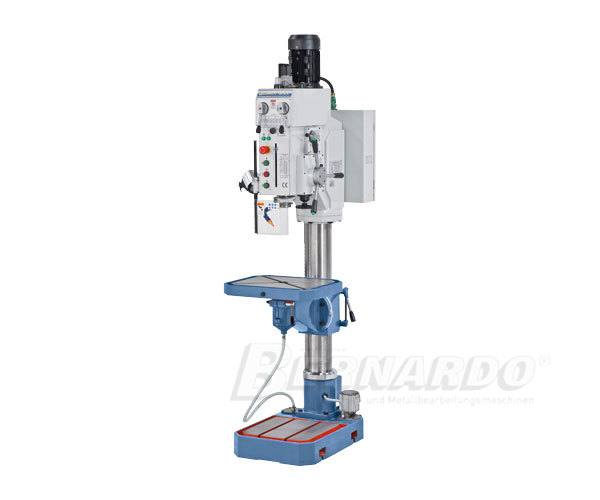

| The GB 40 N gear head drilling machine is solidly constructed and powerful, making this model ideal for repair shops as well as industrial production. | Drilling capacity in steel | 40 mm | | Drilling capacity in cast iron | 45 mm | | Thread cutting max. | M24 | | Drill chuck | 1 - 13 mm / B 16 | | Morse taper | MT 4 | | Spindle speeds | (12) 75 - 2020 rpm | | Feed range | 0,12 / 0,24 / 0,40 mm/rev. | | Distance spindle to column | 340 mm | | Table tiltable | -45° to +45° | | Distance spindle to table max. | 605 mm | | Distance spindle to base | 1190 mm | | Spindle stroke | 195 mm | | Column diameter | 140 mm | | Table size / T-slot size | 540 x 440 mm / 14 mm | | Working surface of base | 400 x 410 mm | | Motor power output S1 100% | 1,5 kW / 400 V | | Motor power input S6 40% | 2,2 kW / 400 V | | Machine dimensions (W x D x H) | 570 x 850 x 2230 mm | | Weight approx. | 615 kg | - Hardened gears with a smooth finish ensure a smooth run
- High concentricity ≤ 0,02 mm, measured at spindle
- Wide speed range 75 - 2020 rpm (12 steps) allows efficient work
- Coolant device and work lamp come standard
- Right and left spindle rotation allows thread-cutting
- Includes 3 automatic spindle feeds, adjustable electromagnetically
- Worktable swivels horizontally around column, 45° tiltable left and right
- High-quality work table with T-slots allows clamping of overly long workpieces
Standard accessories: - Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT 3 / 1
- Automatic tool release device
- Thread cutting device
- Initial filling with Shell Tellus 46
- Halogen lamp
- Coolant device
- Protective cover
Optional accessories: - Morse taper drill chuck arbor MT 4 - B 18 (Art.Nr.:24-1009)
- Spindel taper wiper MT 4 (Art.Nr.:24-1062)
- Keyless drill chuck with direct mount MT 4, 1 - 16 mm (Art.Nr.:24-1073)
- Keyless drill chuck 1 - 16 mm / B 18 (Art.Nr.:24-1083)
- Double roller tapping chuck set MT 4, M 3 - M 12 (Art.Nr.:24-1091)
- Double roller tapping chuck set MT 4, M 12 - M 25 (Art.Nr.:24-1093)
- Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
- Two-parts milling vise MS 160 (Art.Nr.:28-1020)
- Drilling machine vise BMI 150 (Art.Nr.:28-2017)
- Drilling machine vise BMS 140 (Art.Nr.:28-2019)
- Drilling machine vise BMS 200 (Art.Nr.:28-2020)
- Metric size taper shank drills MT 2/3, 17 pcs. - 14,5 -30 mm, set C (Art.Nr.:41-1055)
- Machine mount MS 80 (Art.Nr.:53-2000)
- Bernardo Drilling fluid DRILL, 1:20 dilutable, 5 l canister (Art.Nr.:54-1200)
