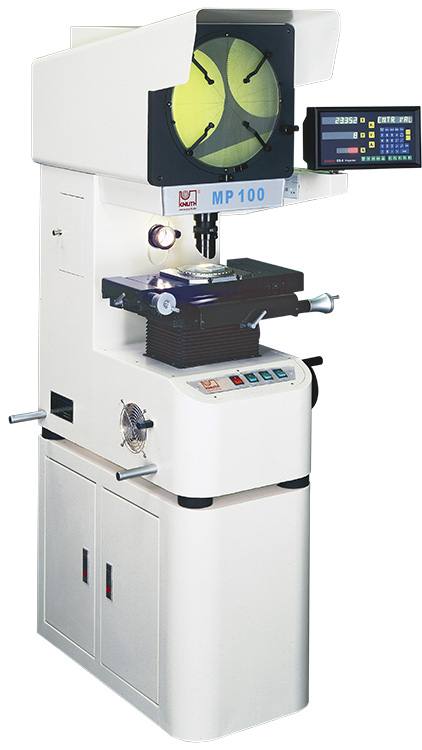

Knuth MP 100 - Measuring Machine
|
Non-contact measuring of projected contours and measurement in various magnifications
- records the workpiece geometry via points in a coordinate system
- excellent optic quality with 10x to 50x magnification
- projected images are bright with optimum contrast and sharp edges
- runs the total measuring distance of 200 x 100 mm without the insertion of slip gauges
- projection data may be printed or transferred to a computer for further processing
- very low contour distortion (0.08%) and high measuring accuracy (3+L/100 µm)
- glass scale for optimum measurement verification
Specifications - MP 100 - Measuring Machine
working area |
|
table dimensions |
350x170 mm |
magnifier dimensions |
225x120 mm |
measurement distance, X-axis |
200 mm |
measurement distance, Y-axis |
100 mm |
workpiece thickness (max.) |
90 mm |
read-out increment, X-axis (min.) |
0,001 mm |
read-out increment, Y-axis (min.) |
0,001 mm |
read-out increment, A-axis (min.) |
0,01 ° |
measuring range, A-axis |
0 - 360 ° |
contur distortion (max.) |
0,08 % |
measuring accuracy |
3+L/100 µm |
effective display diameter |
315 mm |
magnification |
10x, 20x, 50x |
field of view |
30, 15, 6 mm |
working distance |
73, 35, 15 mm |
measures and weights |
|
overall dimensions |
450x725x1600 mm |
Standard equipment - MP 100 - Measuring Machine
precision turn-table, precision lense 10x, position indicator with integrated measuring system, operator manual
|
|
