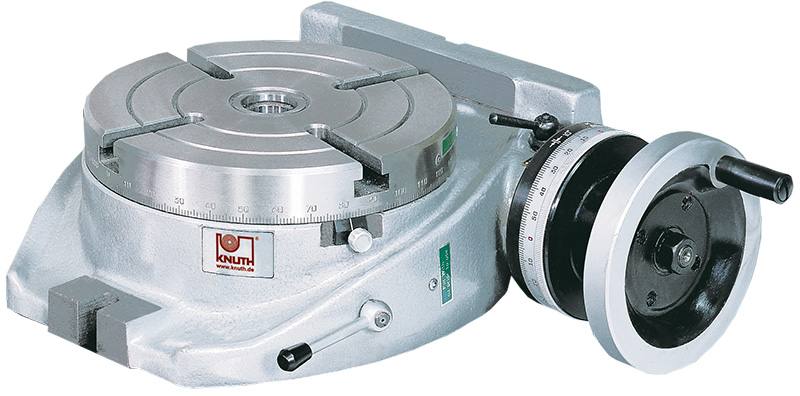

Knuth RT 320 Rotary Table
- completely enclosed design, prevents contamination from dirt and chips
- Setup table rotates on a large ring-shaped box way
- the very effective clamp pulls the setup table down straight, without any change of position or radial pressure and presses it against the guideway
- for quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
- setup table with 360° scale
- the zero-backlash of worm and worm gear is adjustable
- hand wheel scale gradation 10''
- hand wheel can be replaced with indexing plate
- with 6 radial setup T-slots
- very low profile
- guide slot in the vertical base plane
- can be used vertically
Accuracy (max. deviation):
- Sface concentricity of work table setup surface 300 : 0.015
- concentricity of setup
- parallelism of setup to base surface 300 : 0.02
- concentricity of setup table taper bore
- parallelism of bore axis to vertical setup surface 0.03
- parallelism of bore axis to slot in the vertical setup surface 0.02
- parallelism between vertical setup surface and connecting axis taper center-tailstock center 0.02
- parallelism between slot in the vertical setup surface and the connecting axis between centers 0.02
- d ivision accuracy 45"
Specifications - RT 320 - Rotary Table
morse taper |
MT 4 |
ratio |
1:90 |
setup (clamping) |
horiz u vertik |
measures and weights |
|
weight |
75 kg |
Accessories / Tools - RT 320 - Rotary Table
INDEX-feature / RT 160-320 |
|
Tailstock / RT 320 |
|
