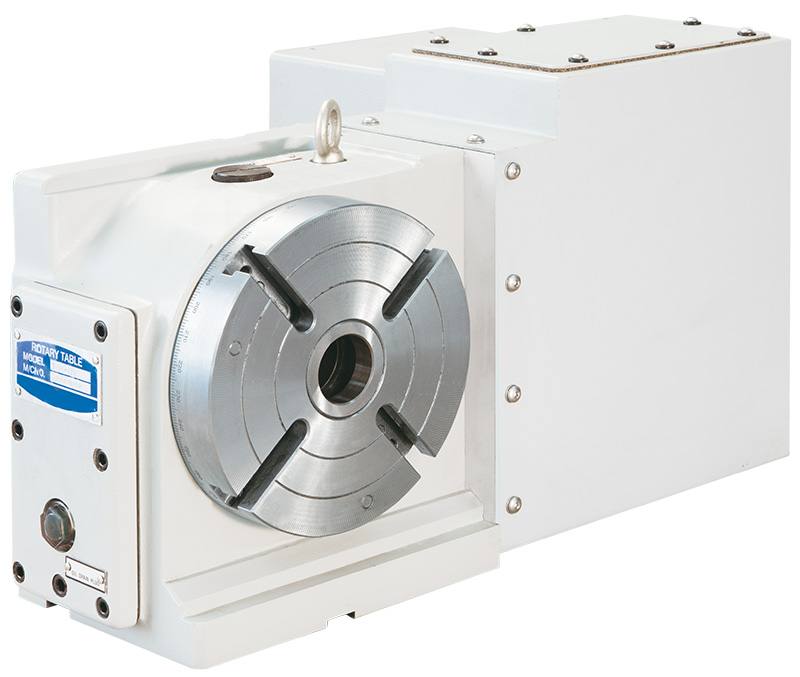

Knuth X.div 125 without servo drive - CNC Divider

Product No.:
125765
Shippingtime:
3-4 days (abroad may vary)
Weight per unit:
25 kg
11.140,91 EURplus 19 % tax, excl. Shipping costs



Knuth X.div 125 without servo drive - CNC Divider

CNC Divider for universal use on CNC milling and engraving machines

  • X.div Dividers have been customized for optimum use on KNUTH CNC Milling and Engraving Machines
  • X.div Dividers without drive unit provide an optimum basis for equipping or retrofitting a wide variety of machines


Specifications - X.div 125 without servo drive - CNC Divider

face plate Ø 125 mm
face plate height (vertical) 150 mm
spin axis (horizontal) 110 mm
through-hole Ø 25 mm H7 / 0,98"
T-slot width 12 mm H7 / 0,5"
T-slots 14 mm H7 / 0,6"
speed (max.) 33,3 rpm
reduction 0
step angle 0,001 °
angular accuracy 40"
repeatability ± 2"
max. load capacity (vertical) 100 kg
max. load capacity (horizontal) 50 kg
turning diameter (max.) 125 mm
weight without motor 25 kg



Accessories / Tools - X.div 125 without servo drive - CNC Divider

Manual chuck 127
