Knuth X.div 170 for Fanuc Control - CNC Divider


15.861,22 EURplus 16 % tax, excl. Shipping costs



Product No.:
125771
Shippingtime:
Weight per unit:
38 kg

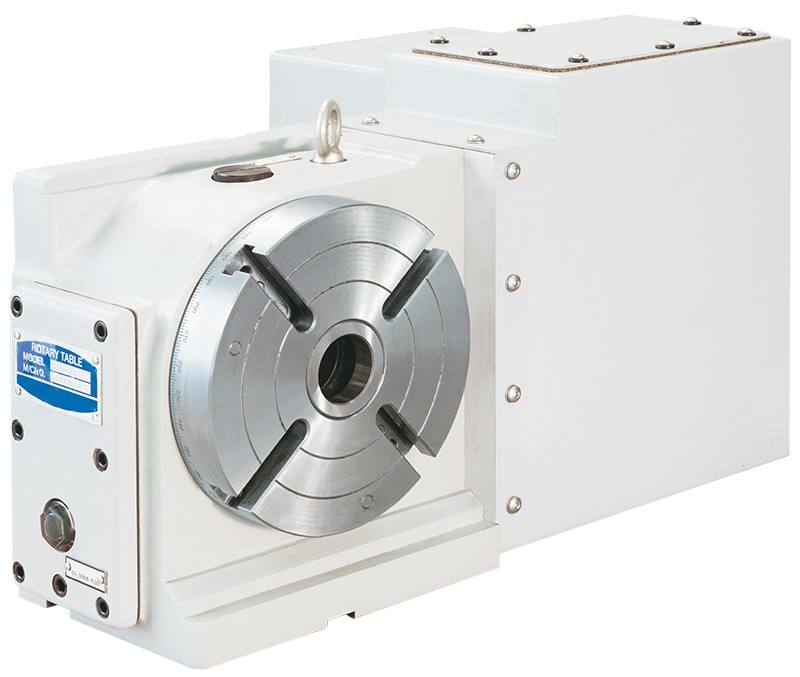

Knuth X.div 170 for Fanuc Control - CNC Divider

CNC Divider for universal use on CNC milling and engraving machines

  • X.div Dividers have been customized for optimum use on KNUTH CNC Milling and Engraving Machines
  • X.div Dividers for Fanuc controls - Complete package including motor and axis module for KNUTH Machines

Specifications - X.div 170 for Fanuc Control - CNC Divider

face plate Ø 170 mm
face plate height (vertical) 150 mm
spin axis (horizontal) 135 mm
through-hole Ø 35 mm H7 / 1,4"
T-slot width 12 mm H7 / 0,5"
T-slots 18 mm H7 / 0,7"
speed (max.) 33,3 rpm
reduction 0
step angle 0,001 °
angular accuracy 20"
repeatability ± 2"
max. load capacity (vertical) 150 kg
max. load capacity (horizontal) 75 kg
turning diameter (max.) 170 mm
weight without motor 38 kg


Accessories / Tools - X.div 170 for Fanuc Control - CNC Divider

Manual chuck 152
