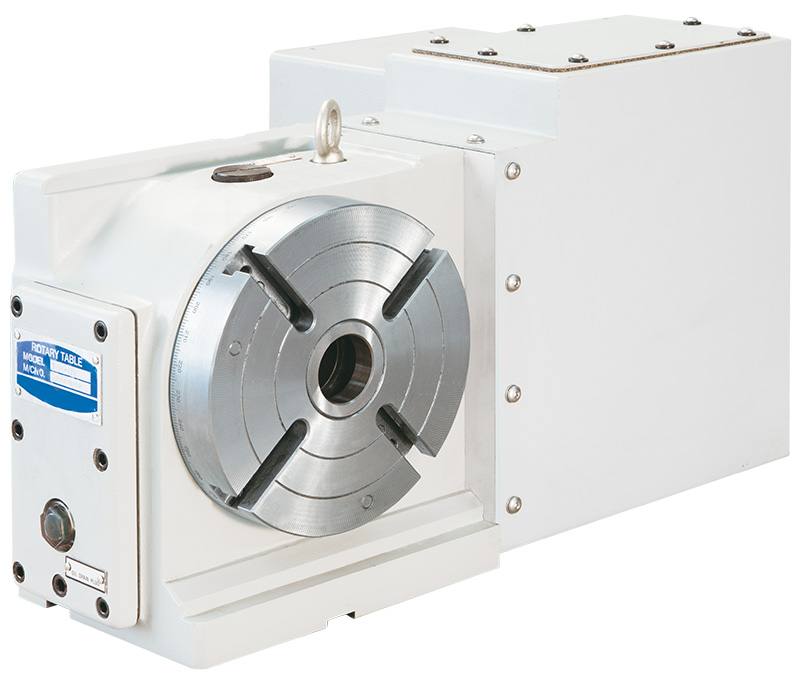

Knuth X.div 170 for Siemens Control - CNC Divider
|
CNC Divider for universal use on CNC milling and engraving machines
- X.div Dividers have been customized for optimum use on KNUTH CNC Milling and Engraving Machines
- X.div Dividers for Siemens controls - Complete package including motor and axis module for KNUTH Machines
|
|
Specifications - X.div 170 for Siemens Control - CNC Divider
| face plate Ø |
170 mm |
| face plate height (vertical) |
150 mm |
| spin axis (horizontal) |
135 mm |
| through-hole Ø |
35 mm H7 / 1,4" |
| T-slot width |
12 mm H7 / 0,5" |
| T-slots |
18 mm H7 / 0,7" |
| speed (max.) |
33,3 rpm |
| reduction |
0 |
| step angle |
0,001 ° |
| angular accuracy |
20" |
| repeatability |
± 2" |
| max. load capacity (vertical) |
150 kg |
| max. load capacity (horizontal) |
75 kg |
| turning diameter (max.) |
170 mm |
| weight without motor |
38 kg |
|
|
Accessories / Tools - X.div 170 for Siemens Control - CNC Divider
Manual chuck 152
|
| |
| |
