Knuth X.div 320 for Siemens Control CNC Divider


37.441,59 EURplus tax excl. Shipping costs



Product No.:
125787
Shippingtime:
Weight per unit:
162 kg

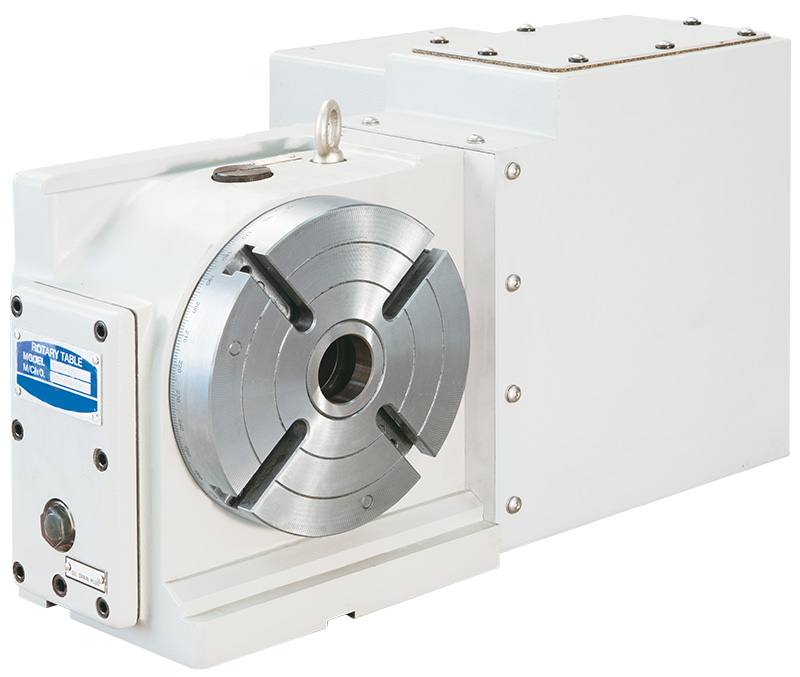

Knuth X.div 320 for Siemens Control CNC Divider

CNC Divider for universal use on CNC milling and engraving machines

  • X.div Dividers have been customized for optimum use on KNUTH CNC Milling and Engraving Machines
  • X.div Dividers for Siemens controls - Complete package including motor and axis module for KNUTH Machines

Specifications - X.div 320 for Siemens Control - CNC Divider

face plate Ø 320 mm
face plate height (vertical) 2200 mm
spin axis (horizontal) 210 mm
through-hole Ø 40 mm H7 / 1,6"
T-slot width 14 mm H7 / 0,6"
T-slots 18 mm H7 / 0,7"
speed (max.) 11,1 rpm
reduction 0
step angle 0,001 °
angular accuracy 15"
repeatability ± 4"
max. load capacity (vertical) 350 kg
max. load capacity (horizontal) 150 kg
turning diameter (max.) 320 mm
weight without motor 162 kg


Accessories / Tools - X.div 320 for Siemens Control - CNC Divider

Manual chuck 254
