Knuth 5C Collet Chuck

Knuth 5C Collet Chuck

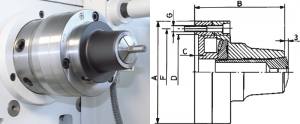

Ø = 125 mm
A = 126 mm
B = 107,5 mm
C = 4 mm
D = 95 mm
F = 108 mm
G = 3 x M8 x 45
weight 5 kg


• the key-verified chuck for use on lathes ensures uniform and torsion free clamping of workpieces
• quick setup and easy handling
• the 5C Collet System is available in mm-increments from 1 to 25 mm
